Product Parameters
ASTM A333 Gr.1; Gr.6 Seamless Steel Tubes and Pipe
Material Specification
ASTM A333 is the standard specification for seamless and welded steel pipe designed for cryogenic service. These pipes are intended for environments where the temperature may drop significantly while maintaining their mechanical properties and structural integrity. The specification covers several grades, of which Grade 1 and Grade 6 are the most commonly used.
Product size
Outer Dimensions: 19.05mm – 114.3mm
Wall Thickness: 2.0mm – 14 mm
Length: max 16000mm
Key Features
Low-Temperature Performance: Designed to withstand low temperatures without compromising strength or ductility.
Versatility: Suitable for various applications, including oil and gas, petrochemical, and power generation industries.
Durability: High resistance to wear and tear, ensuring long service life.
Compliance: Meets international standards for safety and quality.
Chemical Composition
The chemical composition of ASTM A333 Gr.1 and Gr.6 is crucial for their performance in low-temperature environments. Below is a table presenting the typical chemical composition:
| Element | Gr.1 (%) | Gr.6 (%) |
| Carbon (C) | 0.30 max | 0.30 max |
| Manganese (Mn) | 0.40-1.06 | 0.29-1.06 |
| Phosphorus (P) | 0.025 max | 0.025 max |
| Sulfur (S) | 0.025 max | 0.025 max |
| Silicon (Si) | 0.10 min | 0.10 min |
| Nickel (Ni) | - | 0.40 max |
Mechanical Properties
The mechanical properties of ASTM A333 Gr.1 and Gr.6 are designed to ensure performance under low-temperature conditions:
| Property | Gr.1 | Gr.6 |
| Tensile Strength (MPa) | 380 min | 415 min |
| Yield Strength (MPa) | 205 min | 240 min |
| Elongation (%) | 30 min | 30 min |
Physical Properties
The physical properties of these grades are essential for their application in various industries:
| Property | Value |
| Density (g/cm³) | 7.85 |
| Melting Point (°C) | 1425-1540 |
| Thermal Conductivity (W/m·K) | 50.2 |
Process Performance
The process performance of ASTM A333 Gr.1 and Gr.6 is characterized by their ability to be welded and formed:
| Process | Performance |
| Weldability | Good |
| Formability | Good |
| Machinability | Moderate |
Steel Grade
ASTM A333 Gr.1 and Gr.6 are both used in cryogenic applications. Gr.6 is more commonly used, while Gr.1 is suitable for cryogenic applications where temperatures are lower. Gr.1 is relatively cheaper, while Gr.6 has enhanced mechanical properties, making it suitable for more demanding applications. Both grades are widely used in industries where reliability and safety are critical.
Application
These seamless steel tubes and pipes are commonly used in:
Oil and Gas Industry: For transportation of fluids and gases.
Petrochemical Plants: In processing units where low temperatures are prevalent.
Power Generation: In systems requiring durable and reliable piping solutions.
Cryogenic Applications: Where materials must perform at extremely low temperatures.
Possible Alternative Grades
While ASTM A333 Gr.1 and Gr.6 are popular choices, alternative grades may be considered based on specific requirements:
ASTM A334: Another low-temperature steel pipe specification.
ASTM A106: Suitable for high-temperature service.
ASTM A335: For high-temperature and high-pressure applications.

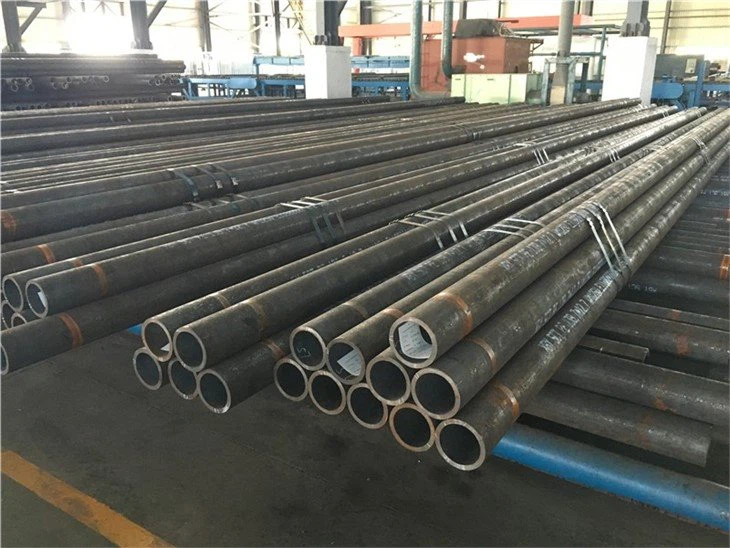

Product Show
