Product Parameters
EN10216-1 Seamless Hot Rolled And Cold Drawn Steel Tube And Pipe
overview
EN10216-1 is the European standard for seamless steel tubes for pressure purposes, covering non-alloy steel tubes with specific room temperature properties. The standard specifies the technical delivery conditions for hot-rolled and cold-drawn steel tubes. EN10216-1 seamless steel tubes are hollow tube shells formed by drawing a solid steel billet through a perforated bar, without welds or seams. These steel tubes are suitable for high-temperature and high-pressure applications, such as boiler water pipes, power plants, and petrochemical plants.
Size Range
O.D.:10.2-711mm
W.T.:1-100mm
L:max12000mm
Key Features
The seamless structure ensures uniformity and strength and can withstand higher pressure.
There are two processes, hot rolling, and cold drawing, which can be selected according to actual application needs.
Chemical Composition
| Element | Percentage (%) |
| C (Carbon) | 0.16 max |
| Si (Silicon) | 0.35 max |
| Mn (Manganese) | 1.20 max |
| P (Phosphorus) | 0.025 max |
| S (Sulfur) | 0.020 max |
Mechanical Properties
| Property | Value |
| Tensile Strength | 410-530 MPa |
| Yield Strength | 255 MPa min |
| Elongation | 21% min |
| Impact Test | -20°C, 27J min |
Physical Properties
| Property | Value |
| Density | 7.85 g/cm³ |
| Melting Point | 1420-1460°C |
| Thermal Conductivity | 50 W/m·K |
| Specific Heat | 490 J/kg·K |
Process Performance
| Performance | Specification |
| Hot Rolled | Diameter: 21.3-660mm; Thickness: 2.0-30mm |
| Cold Drawn | Diameter: 10-108mm; Thickness: 1.5-10mm |
Steel Grade
The steel grades covered by EN10216-1 include:
P195TR1/P195TR2
P235TR1/P235TR2
P265TR1/P265TR2
Application
Boilers, Heat exchangers
Petrochemical processing
Oil and gas transportation
Chemical processing
Possible Alternative Grades
Alternative grades that could be considered based on specific requirements and applications include:
ASTM A106/A106M
ASTM A53/A53M
DIN 17175
These alternative grades may offer similar or enhanced properties depending on the intended use case. Always consult with materials engineers to determine the most suitable grade for your application.

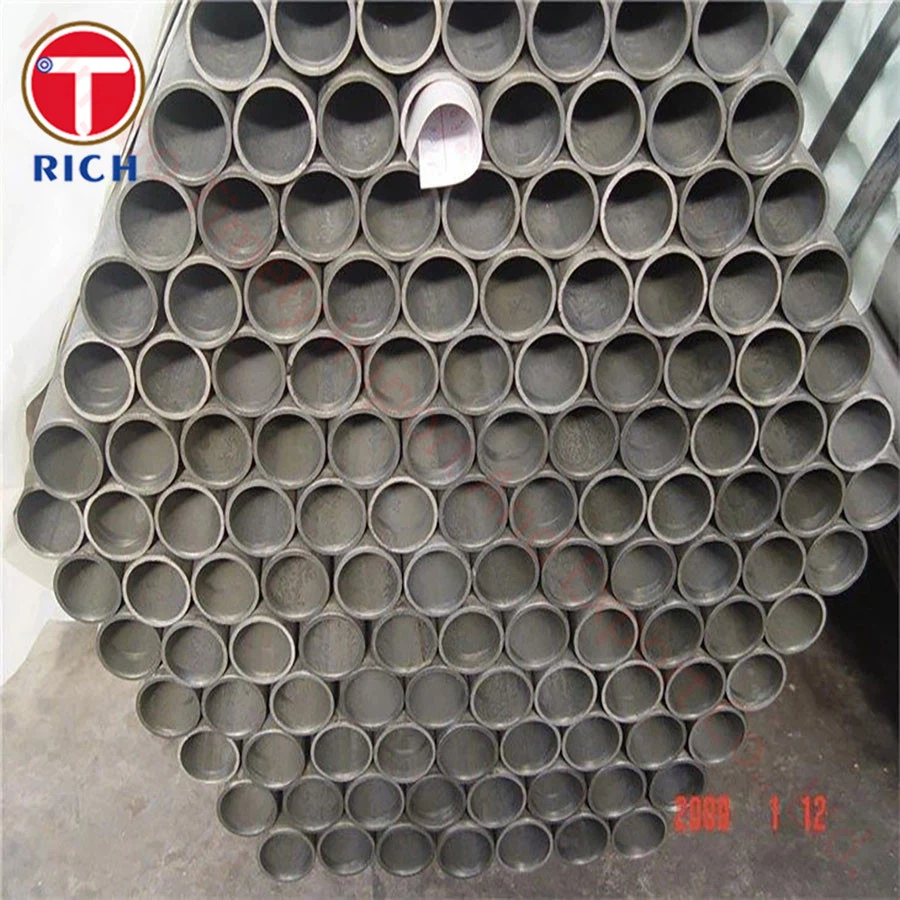

Product Show
