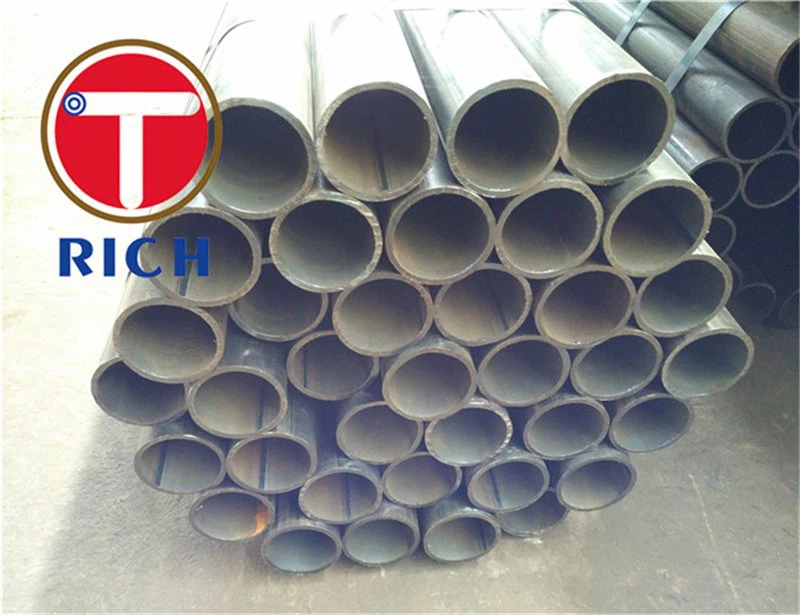

ASTM A178 Welded Boiler Steel Tubes
Material Overview
ASTM A178 is a specification for welded carbon steel and carbon-manganese steel boiler tubes that are used for high-pressure service, heating applications, and power generation. These tubes are commonly used in boilers, superheaters, heat exchangers, and condensers.
Specification
The ASTM A178 specification covers several grades of electric-resistance-welded (ERW) tubes made of carbon steel and carbon-manganese steel. The tubes are available in various sizes and thicknesses, and they must conform to the required mechanical properties and chemical composition.
Chemical Composition
The chemical composition of ASTM A178 tubes varies depending on the grade. Here is a general overview of the typical chemical composition:
| Element | Grade A | Grade C |
|---|---|---|
| Carbon | 0.06-0.18% | 0.35% max |
| Manganese | 0.27-0.63% | 0.80-1.06% |
| Phosphorus | 0.035% max | 0.035% max |
| Sulfur | 0.035% max | 0.035% max |
| Silicon | - | 0.10-0.35% |
Mechanical Properties
The mechanical properties of ASTM A178 tubes are specified to ensure their suitability for boiler applications. The following table outlines the typical mechanical properties of Grade A and Grade C tubes:
| Property | Grade A | Grade C |
|---|---|---|
| Tensile Strength | 325 MPa min | 415 MPa min |
| Yield Strength | 180 MPa min | 275 MPa min |
| Elongation | 35% min | 30% min |
| Hardness (Rockwell B) | - | 77 max |
Steel Grade
ASTM A178 specifies two grades of welded boiler steel tubes: Grade A and Grade C. Grade A is suitable for general-purpose applications, while Grade C is intended for higher temperature and pressure conditions.
Application
ASTM A178 welded boiler steel tubes find extensive usage in various industries, primarily in power generation, heating systems, and high-pressure boilers. They are employed in the construction of boilers, superheaters, heat exchangers, and condensers. These tubes are designed to withstand high temperatures and pressure, making them crucial components in efficient and reliable boiler systems.
