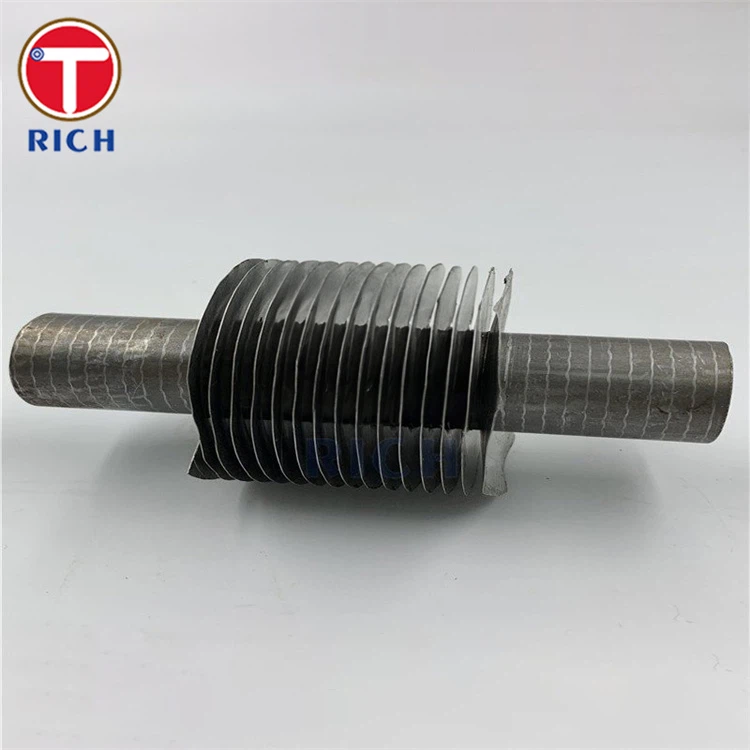

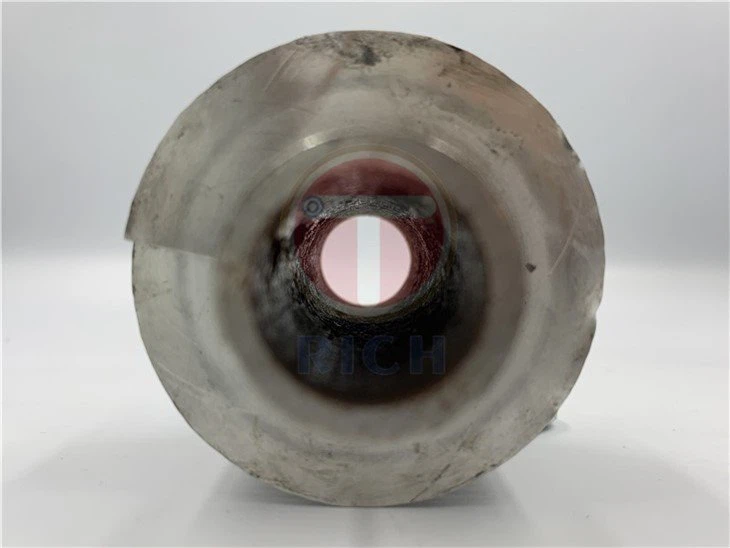

Longitudinal Finned Tubing For Air Cooler
Material
The longitudinal finned tubing used for air coolers is primarily made from carbon steel due to its excellent mechanical properties and cost-effectiveness. Carbon steel is widely used in various industrial applications, including heat exchangers and air coolers. The specific grade of carbon steel used for longitudinal finned tubing may vary depending on the requirements and operating conditions of the air cooler.
Specification
The specification of longitudinal finned tubing for air coolers typically includes the following parameters:
- Tube Dimensions: Outer Diameter (OD), Inner Diameter (ID), Wall Thickness (WT).
- Fin Dimensions: Height, Thickness, Pitch (distance between adjacent fins), Type (longitudinal fins).
- Tube Length: Overall length of the finned tube.
- Finned Length: Length of the tube with fins.
- Number of Fins: Total number of fins along the finned section.
- Base Tube Material: The type of carbon steel used for the base tube.
Fining Material: The material used for the fins.
Chemical Composition
The chemical composition of the carbon steel used for the base tube typically comprises the following elements:
| Element | Composition Range (Percentage by Weight) |
| Carbon (C) | 0.12% - 0.25% |
| Silicon (Si) | 0.10% - 0.35% |
| Manganese (Mn) | 0.30% - 0.60% |
| Phosphorus (P) | 0.025% (maximum) |
| Sulfur (S) | 0.025% (maximum) |
Please note that the chemical composition may vary slightly depending on the specific steel grade and manufacturer.
Mechanical Properties
The longitudinal finned tubing's mechanical properties are crucial to ensure its reliable performance in air cooler applications. The typical mechanical properties of the carbon steel used in longitudinal finned tubing are as follows:
| Property | Value |
| Tensile Strength | 450 MPa (minimum) |
| Yield Strength | 350 MPa (minimum) |
| Elongation | 20% (minimum) |
| Hardness | 85 HRB (maximum) |
| Impact Toughness | 50 J (minimum) at room temp. |
These mechanical properties ensure the tubing's ability to withstand the stresses and temperature variations experienced during the operation of air coolers.
Steel Grade
The steel grade used for longitudinal finned tubing is typically specified according to international standards such as ASTM, DIN, or EN. Common steel grades for this application include:
- ASTM A179
- ASTM A192
- ASTM A210
- DIN 17175
- EN 10216-2
The selection of the steel grade depends on factors such as operating temperature, pressure, and corrosion resistance requirements.
Application
Longitudinal finned tubing finds extensive application in various industries, especially in air coolers and heat exchangers. The longitudinal fins increase the heat transfer surface area, enhancing the overall efficiency of the air cooler. Some common applications include:
- Industrial Air Coolers: Used in various industrial processes to cool air and maintain optimal operating temperatures.
- Refrigeration Systems: Utilized in refrigeration systems to dissipate heat and maintain low temperatures.
- Power Plants: Employed in power plants for cooling gases and liquids in heat recovery systems.
- Chemical Processing: Used in chemical processing units for efficient heat exchange during various chemical reactions.
Petrochemical Industry: Widely applied in the petrochemical sector to cool gases and liquids in refining processes.
