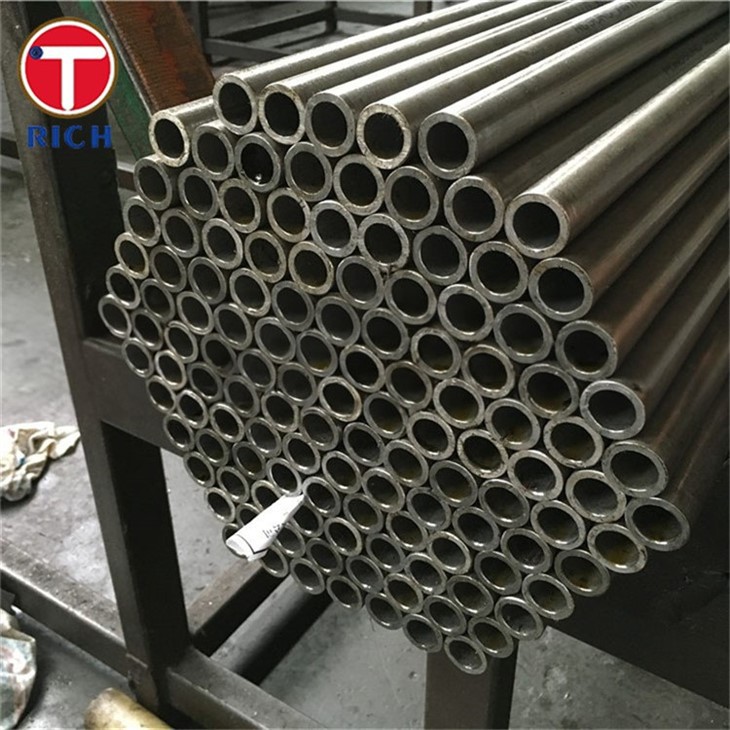

ASTM A106 High Carbon Steel Tube
Material and Specification
ASTM A106 is a standard specification for seamless carbon steel pipe for high-temperature service. The tube is commonly used in applications where high temperatures and pressure conditions are encountered. It is suitable for bending, flanging, and similar forming operations. ASTM A106 covers both seamless hot-finished and cold-finished pipes in sizes up to and including NPS 1-1/2.
Chemical Composition
The chemical composition of ASTM A106 carbon steel tube must adhere to the following requirements:
| Element | Composition (%) |
| Carbon (C) | 0.25 max |
| Manganese (Mn) | 0.27-0.93 |
| Phosphorus (P) | 0.035 max |
| Sulfur (S) | 0.035 max |
Mechanical Properties
The mechanical properties of ASTM A106 carbon steel tube are specified as per the guidelines below:
| Property | Minimum Tensile Strength | Minimum Yield Strength | Minimum Elongation |
| Grade A | 48,000 psi (330 MPa) | 30,000 psi (205 MPa) | 35% |
| Grade B | 60,000 psi (415 MPa) | 35,000 psi (240 MPa) | 30% |
| Grade C | 70,000 psi (485 MPa) | 40,000 psi (275 MPa) | 30% |
Steel Grade
ASTM A106 carbon steel tube is available in three different grades: Grade A, Grade B, and Grade C. Each grade has distinct mechanical properties and is suitable for specific applications.
Application
The ASTM A106 high carbon steel tube finds application in various industries due to its high-temperature resistance and excellent mechanical properties. Some common applications include:
Oil and Gas Industry: It is used in the transportation of oil and gas at high temperatures and pressures.
Power Plants: ASTM A106 tubes are widely employed in power generation plants for conveying steam and other fluids in high-temperature environments.
Boiler Applications: The tube is utilized in boilers to withstand elevated temperatures and maintain structural integrity.
Heat Exchangers: ASTM A106 tubes are employed in heat exchanger systems where heat transfer occurs between fluids at different temperatures.
Construction: It is used in construction projects that require high-strength and temperature-resistant piping.
Automotive Industry: ASTM A106 tubes find usage in automotive exhaust systems due to their ability to withstand high exhaust gas temperatures.
Processing Industry: The tube is suitable for various processing applications involving high-temperature fluids.
