Saw Welded Pipe

Saw Welded Pipe 1. JIS G3452 Scope: This standard specifies the carbon steel pipes used for piping to convey steam, water( except public water supply service), oil, gas, air, . at comparatively low working pressures. This Standard is applicable to welded saw pipe with an outside diameter of 10.5...

Product Parameters

Saw Welded Pipe

Material

Saw Welded Pipe is a strong and durable material primarily composed of iron and carbon, with other elements added for specific properties. Suitable for various applications due to its high strength and corrosion resistance.

Specification

Parameter	Description
Type	Saw welded pipe
Size Range	Various sizes and diameters available
Length	Customizable lengths available
Wall Thickness	Different wall thicknesses available based on application requirements
Coating	Options for coatings such as galvanized or epoxy

Key Features

Feature	Description
High Strength	Provides excellent resistance against mechanical stress and external forces
Corrosion Resistance	Resistant to rust and corrosion, increasing the lifespan of the pipe
Easy Weldability	Can be easily welded to create strong and durable joints
Versatility	Suitable for a wide range of applications due to its adaptability
Cost-effective	Provides a cost-effective solution for various industrial uses

Chemical Composition

Element	Percentage Range
Carbon (C)	0.15% - 0.25%
Manganese (Mn)	0.3% - 0.6%
Silicon (Si)	0.25% - 0.5%
Phosphorus (P)	< 0.04%
Sulfur (S)	< 0.05%

Mechanical Properties

Property	Value
Tensile Strength	55,000-75,000 psi
Yield Strength	30,000-45,000 psi
Elongation	20% min
Hardness	80 HRB max
Impact Strength	Varies based on steel grade and thickness

Steel Grade

Saw welded pipes are commonly available in various steel grades, including but not limited to:

ASTM A53
API 5L
ASTM A106
ASTM A500

Application

Saw welded pipes find extensive use in different industries and applications, such as:

Oil and gas pipelines
Water supply systems
Structural and construction projects
Mechanical and engineering applications
Industrial processes requiring fluid transportation

Possible Alternative Grades

If a specific steel grade is not available or desired, below are some alternative options that can be considered:

ERW (Electric Resistance Welded) pipes
Seamless pipes
DSAW (Double Submerged Arc Welded) pipes
LSAW (Longitudinal Submerged Arc Welded) pipes

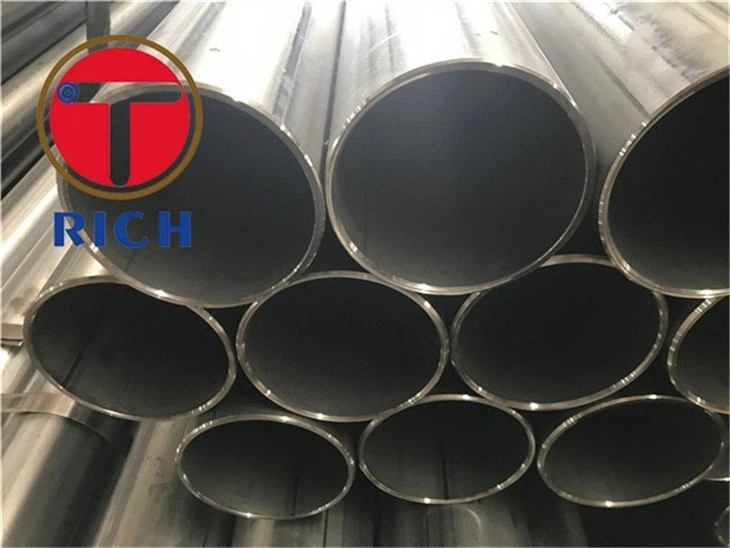

Product Show

2 (1)
