Product Parameters

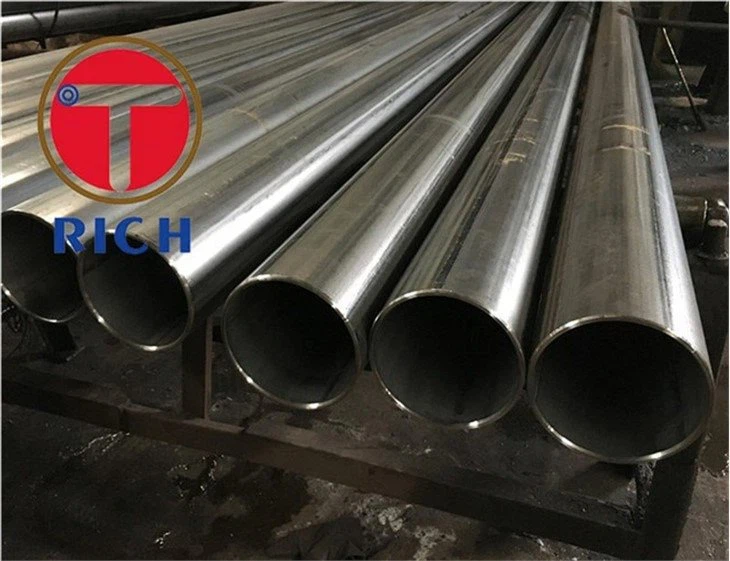

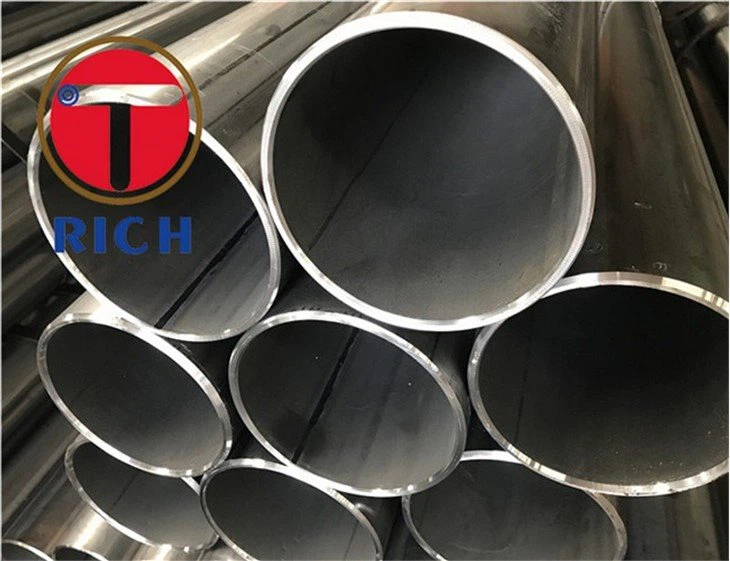

ASTM 106 A53 Carbon Steel ERW Tube Pipe

overview

Electric resistance welded steel pipe, commonly known as ERW pipe, is made by heating steel with an electric current to form a weld. ERW pipe is highly efficient to produce and costs less than seamless pipe. It is often used in low-pressure fluid delivery, construction, and other fields. In addition to this, ERW pipe is also used in the automotive industry to manufacture components such as exhaust systems and vehicle frames.

Size

Single Random Length and double Random Length.
SRL:3M-5.8M DRL:10-11.8M or As clients requested length.
Fixed length(5.8m, 6m, 12m)

Chemical Composition

Element	ASTM A106 (%)	ASTM A53 (%)
Carbon	0.25 max	0.30 max
Manganese	0.27-0.93	1.20 max
Phosphorus	0.035 max	0.05 max
Sulfur	0.035 max	0.045 max
Silicon	0.10 min	-

Mechanical Properties

Property	ASTM A106	ASTM A53
Tensile Strength	415 MPa	330 MPa
Yield Strength	240 MPa	205 MPa
Elongation	20% min	25% min

Physical Properties

Property	Value
Density	7.85 g/cm³
Melting Point	1425-1540°C
Thermal Conductivity	51.9 W/m·K

Process Performance

Process	Performance
Weldability	Excellent
Machinability	Good
Formability	Good
Heat Treatment	Applicable

Steel Grade

ASTM A106 and A53 pipes are available in different grades, each offering specific properties:

Grade A: Suitable for lower pressure applications with moderate strength requirements.

Grade B: The most commonly used grade, offering a balance of strength and ductility.

Grade C: Provides higher strength, suitable for more demanding applications.

Application

ASTM A53

Construction, underground transportation, extraction of groundwater during construction, steam water transportation, etc.
Bearing sets, mechanical parts processing.
Electrical applications: gas transmission, hydroelectric fluid pipelines.

ASTM A106
Especially for high-temperature services up to 750°F, it can replace ASTM A53 pipes in most cases. In some countries, at least in the United States, usually ASTM A53 is used for welded pipes, and ASTM A106 is used for seamless pipes. If customers ask for ASTM A53, they will also provide A106. In China, manufacturers will provide pipes that meet three standards ASTM A53 B / ASTM A106 B / API 5L B.
