Product Parameters
ASTAM A519 1026 Seamless Mechanical Tubing
Introduction
ASTM A519 is a specification for seamless carbon and alloy steel mechanical tubing. Grade 1026 pipe is a medium carbon steel pipe manufactured to ASME specifications and commercially known as carbon steel pipe. ASTM A519 1026 pipe is widely used in industries that require high-quality, and excellent mechanical properties.
Material and Specification
ASTM A519 1026 tubing is manufactured using carbon and alloy steel. The specification outlines the requirements for seamless mechanical tubing with sizes ranging from 0.375 inches to 5.0 inches (9.53 mm to 127.0 mm) in outside diameter and 0.035 inches to 0.500 inches (0.89 mm to 12.70 mm) in wall thickness.
Chemical Composition
The chemical composition of ASTM A519 1026 tubing is crucial for determining its mechanical properties and suitability for specific applications. The following table presents the typical chemical composition of ASTM A519 1026 tubing:
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.22 - 0.28 |
| Manganese (Mn) | 0.60 - 0.90 |
| Phosphorus (P) | 0.040 max |
| Sulfur (S) | 0.050 max |
Mechanical Properties
The mechanical properties of ASTM A519 1026 tubing make it suitable for a range of applications requiring high strength and durability. The following table showcases the typical mechanical properties of ASTM A519 1026 tubing:
| Property | Value |
|---|---|
| Tensile Strength | 75,000 - 85,000 psi (517 - 586 MPa) |
| Yield Strength | 60,000 psi (414 MPa) minimum |
| Elongation | 15% minimum |
| Hardness | HRB 80 - 85 |
Steel Grade
ASTM A519 1026 tubing is produced using quality steel that conforms to the specified chemical composition and mechanical property requirements. The steel used in this tubing is carefully selected to ensure consistent performance in mechanical applications.
Application
ASTM A519 1026 tubing finds applications in various industries due to its excellent mechanical properties and durability. Some common applications include:
-
Machinery Parts: ASTM A519 1026 tubing is often used in the manufacturing of machinery components that require high strength and resistance to stress.
-
Automotive Components: This tubing is utilized in the production of automotive parts such as axles, drive shafts, and structural components.
-
Construction Equipment: ASTM A519 1026 tubing is well-suited for construction machinery components due to its robustness and ability to withstand heavy loads.
-
Industrial Equipment: Many industrial applications benefit from the reliability and toughness of ASTM A519 1026 tubing, including equipment used in mining, oil and gas, and material handling.

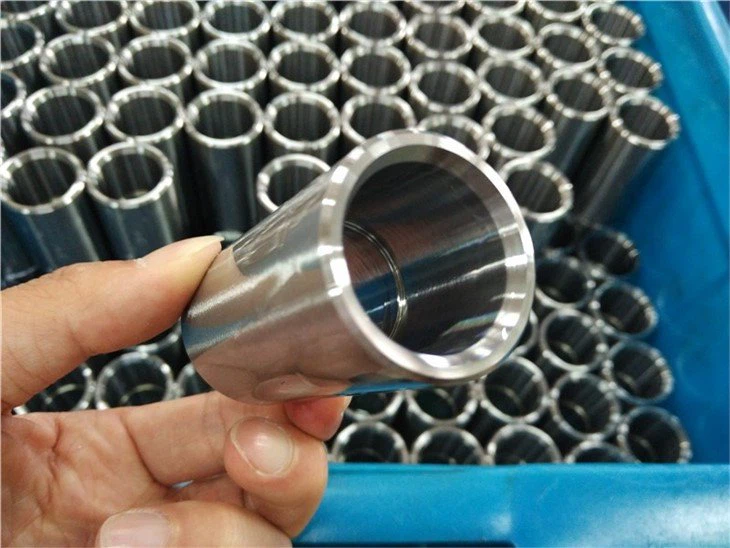

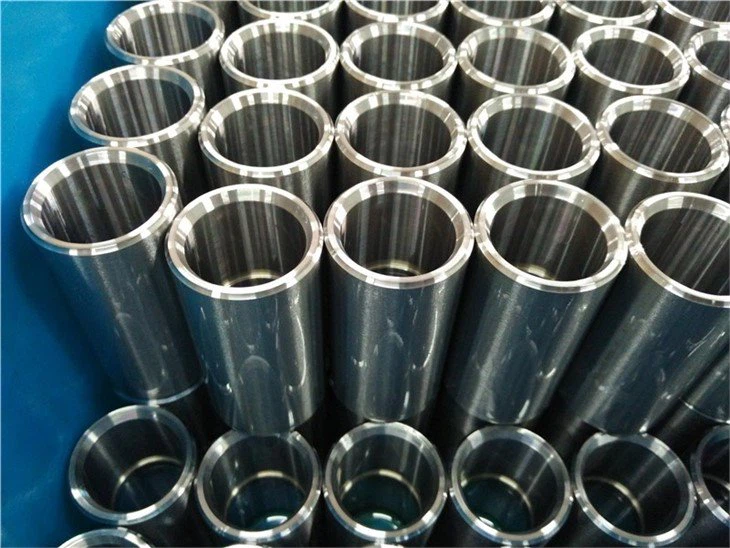

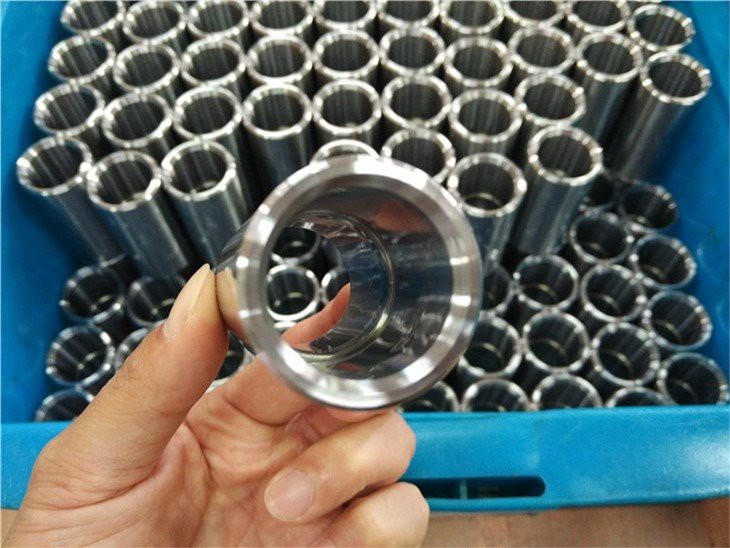

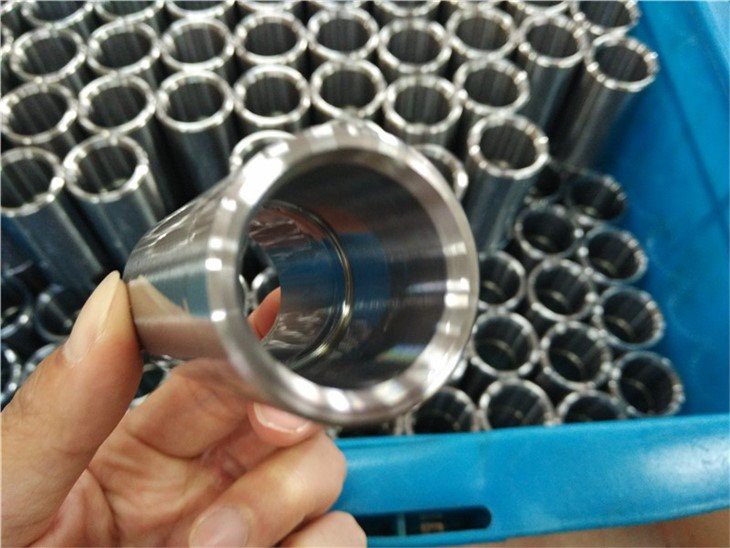

Product Show
