ERW Pipe And Seamless Pipe
Introduction
When it comes to choosing the right pipes for various industrial applications, two common options are Electric Resistance Welded (ERW) pipes and Seamless pipes. These pipes serve as critical components in industries such as construction, oil and gas, and manufacturing. This article will delve into the differences between ERW and Seamless pipes, exploring their material, specifications, key features, chemical composition, mechanical properties, steel grades, applications, and possible alternative grades.
Material And Specification
-
ERW Pipe: ERW pipes are made from flat-rolled steel sheets that are formed into a tubular shape through a process of electric resistance welding. They come in various sizes and thicknesses, and their specifications typically follow industry standards like ASTM A53, ASTM A135, and API 5L.
-
Seamless Pipe: Seamless pipes are produced by piercing a solid billet to create a hollow tube. They are known for their uniform composition and absence of seams. Seamless pipes conform to standards like ASTM A106, ASTM A333, and API 5L.
Key Features
ERW Pipe:
-
Cost-effective production.
-
Suitable for non-critical applications.
-
Available in a wide range of sizes.
-
Excellent dimensional accuracy.
Seamless Pipe:
-
Superior strength and durability.
-
Ideal for high-pressure and high-temperature applications.
-
Seamless structure ensures no weak points.
-
Slightly higher cost due to manufacturing process.
Chemical Composition
|
Element |
ERW Pipe (%) |
Seamless Pipe (%) |
|
Carbon (C) |
0.30 - 0.35 |
0.25 - 0.30 |
|
Manganese (Mn) |
0.60 - 0.90 |
0.30 - 0.90 |
|
Silicon (Si) |
0.10 - 0.35 |
0.10 - 0.35 |
|
Sulfur (S) |
0.04 Max |
0.04 Max |
|
Phosphorus (P) |
0.04 Max |
0.04 Max |
Mechanical Properties
|
Property |
ERW Pipe |
Seamless Pipe |
|
Tensile Strength (MPa) |
415 - 520 |
415 - 520 |
|
Yield Strength (MPa) |
240 - 310 |
240 - 310 |
|
Elongation (%) |
22% minimum |
22% minimum |
|
Hardness (Brinell) |
137 BHN (max) |
137 BHN (max) |
|
Impact Test (Joules) |
In accordance with standards |
In accordance with standards |
Steel Grade
Both ERW and Seamless pipes can be manufactured from various steel grades. The choice of steel grade depends on the specific application and required properties. Common steel grades include:
-
ASTM A106 Grade B
-
API 5L Grade X52
-
ASTM A333 Grade 6
-
ASTM A53 Grade B
Application
ERW Pipe:
-
Water and gas conveyance
-
Structural and architectural applications
-
Fencing and scaffolding
-
Low to medium-pressure systems
Seamless Pipe:
-
Oil and gas exploration and production
-
High-pressure and high-temperature applications
-
Critical fluid transport
-
Power generation
Possible Alternative Grades
In certain cases, alternative grades of pipes can be used based on specific requirements. For ERW pipes, you can consider HFI (High-Frequency Induction) welded pipes. For Seamless pipes, duplex and super duplex stainless steel can be alternatives for corrosion-resistant applications.
In conclusion, the choice between ERW and Seamless pipes depends on the specific needs of the project. While ERW pipes are cost-effective and suitable for non-critical applications, Seamless pipes offer superior strength and durability, making them ideal for high-pressure and high-temperature scenarios. The right choice can significantly impact the performance and longevity of your industrial systems.

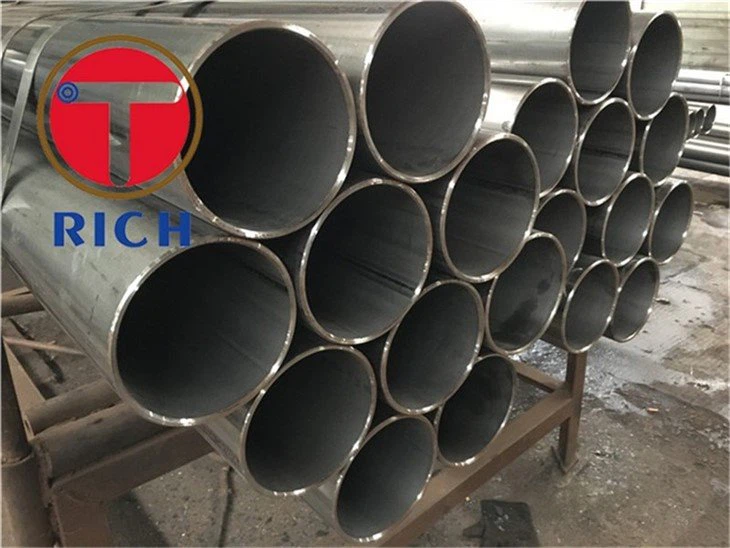

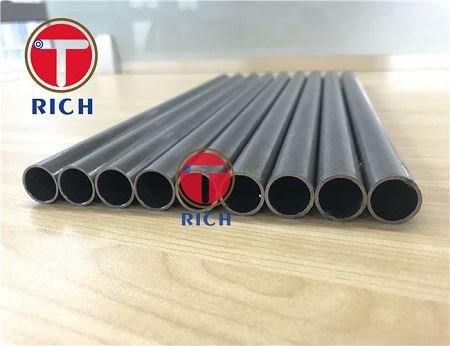

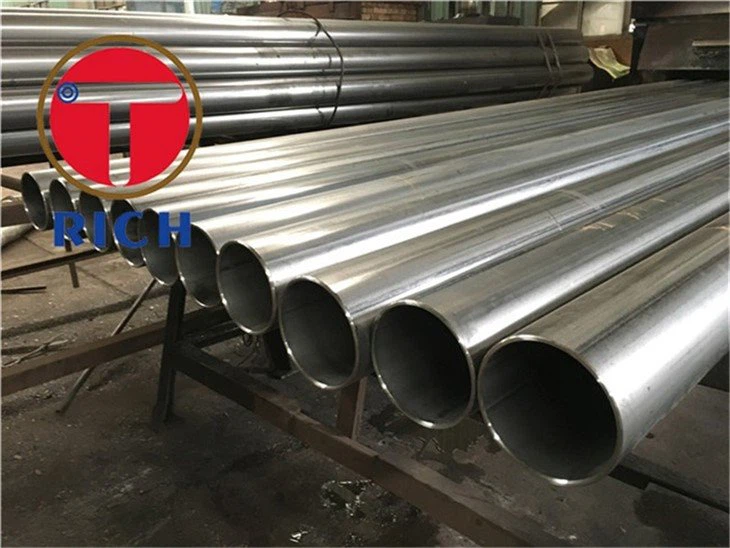

Product Show
 |
 |
