Products Description
Our Advantages
1. High Thermal Transfer Performance

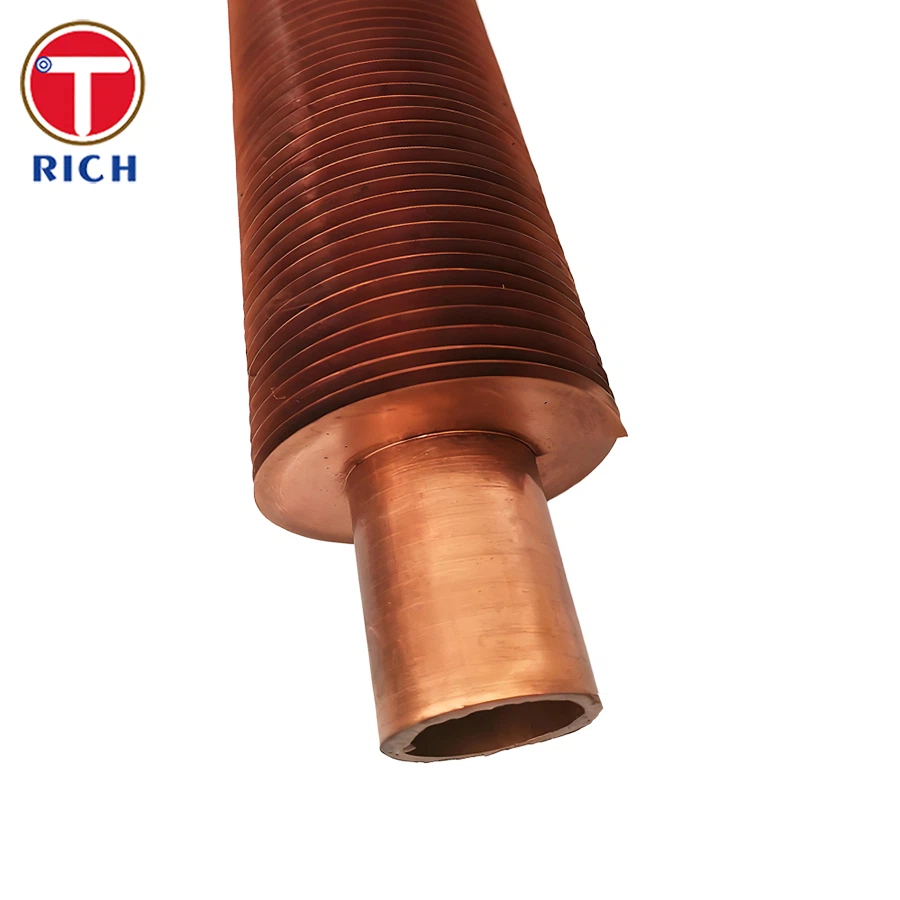

- Our 'L' Foot Copper Fin Tube is made of premium copper, one of the commercially available metals with the highest thermal conductivity. TORICH employs rigorous material control, employing spectrometer testing to ensure compliance with ASTM B111 standards.
- The L-shaped base design maximizes the contact area between the fins and the tube, ensuring efficient heat exchange in air coolers, condensers, evaporators, and HVAC systems.
2. Strong Corrosion Resistance
- Compared to finned tubes made of other materials, copper finned tubes exhibit strong corrosion resistance, rapidly forming a natural protective oxide layer upon exposure to air, water, or moisture.
- Our 'L' Foot Copper Fin Tube passes intergranular corrosion testing and salt spray testing, ensuring durability in HVAC, marine, and heat exchanger applications.
3. Quality Control
- Our tubing undergoes a series of rigorous quality tests before packaging: eddy current testing ensures the base tube is free of cracks, inclusions, or uneven wall thickness; fin adhesion strength testing ensures the fins will not slip or detach during operation.
- We strictly control the outer diameter, wall thickness, and straightness of the tubing to ensure easy installation onto tube sheets without bending issues.
4. Customization Services
- We offer customized size services, and fin materials such as aluminum, copper, or tin-plated copper, or fin materials requested by the customer.
- TORICH provides comprehensive OEM and ODM support: production based on customer drawings, support for own brands and custom brands, and comprehensive technical documentation support.
5. Packaging and Shipping
- To protect the fins from loosening or deformation, each finned tube is wrapped in thin foam; various packaging methods are available, including wooden crates and pallets. Custom packaging can also be provided according to customer requirements.
- We offer multiple shipping methods, including sea freight, air freight, and land freight, and samples are available.
application areas
- HVAC and Refrigeration Systems: Condensers and evaporator coils, water-cooled and air-cooled heat exchangers, etc.
- Industrial Heat Exchangers: Air heaters, economizers and gas coolers, process heat exchangers, etc.
- Marine and Offshore Applications: Marine HVAC systems, marine coolers and heaters, etc.
- Petrochemical and Chemical Processing: Air-cooled radiators, chemical processing heat exchangers, condensers, etc.
- Automotive and Transportation Systems: Radiators, HVAC equipment for buses, trains, and heavy machinery, etc.
Chemical Composition
| Element | Cu (%) | Ni (incl. Co) (%) | Fe (%) | P (%) | Mn (%) | O (%) | Others (%) |
|---|---|---|---|---|---|---|---|
| C12200 | 99.90 min | - | - | 0.015–0.040 | - | - | ≤ 0.06 |
| C11000 | 99.90 min | - | - | - | - | ≤ 0.04 | ≤ 0.03 |
| C70600 | 88.7–90.0 | 9.0–11.0 | 1.0–1.8 | - | 0.5–1.0 | - | ≤ 0.50 |
Mechanical Properties
| Property | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HB) | Thermal Conductivity (W/m·K) |
|---|---|---|---|---|---|
| C12200 | 205–245 | 69–100 | ≥ 30 | 45–80 | ~330 |
| C11000 | 220–310 | 70–140 | 15–55 | 40–90 | ~390 |
| C70600 | 275–345 | 105–131 | ≥ 30 | 70–110 | ~29 |
Possible Alternative Grades
| Alternative Grades | Reasons |
| C71500 (70/30 CuNi) | It has superior resistance to seawater corrosion. |
| C68700 | Aluminum brass has good resistance to dezincification. |
| TP304/TP304L | General purpose, with good corrosion resistance, it is widely used in HVAC systems. |
Products Show
Testing Equipment
Eddy Current Flaw Detector
Hydraulic Universal Testing Machine
Intergranular Corrosion Tester
Factory Equipment
Pickling equipment
L/LL/KL equipment
Cold drawing equipment
Products Package
