Products Description
Product Specifications
| Standards | ASTM A778 |
| Steel Grades | TP304, TP304L (TP316, TP316L, TP317L, TP321, and TP347 also available) |
| Equivalent Standards | EN 1.4301(304)/ 1.4307(304L);JIS SUS304/SUS304L;GB 06Cr19Ni10(304)/ 022Cr19Ni10(304L) |
| Outer Diameter (OD) | 8 mm – 1800 mm |
| Wall Thickness (WT) | 1 mm – 60 mm |
| Length | 6 / 12 m, or customized |
| Surface Treatment | Mill finish, pickled, polished or brushed |
| Production Process | TIG, plasma, high-frequency welding, etc. |
| Condition | As-welded / unannealed |

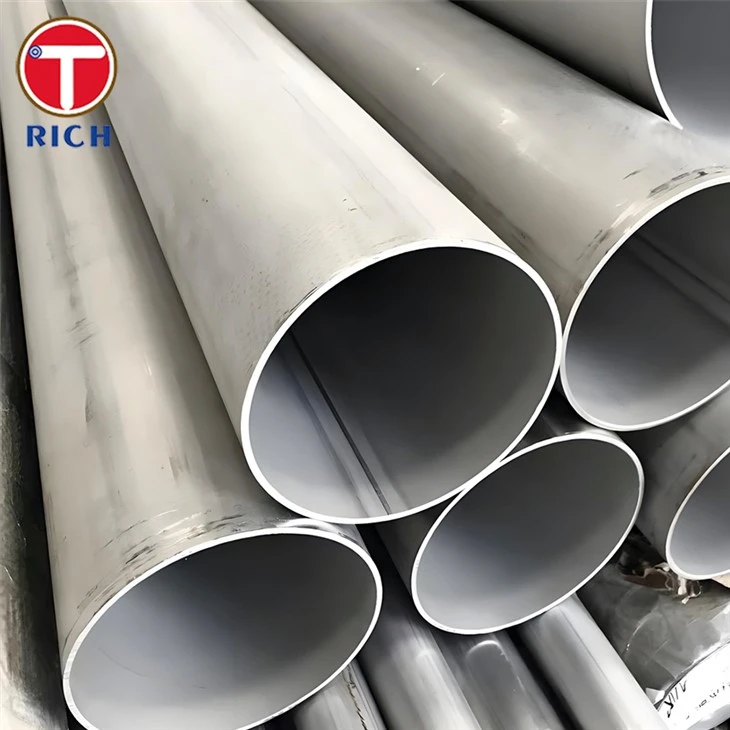

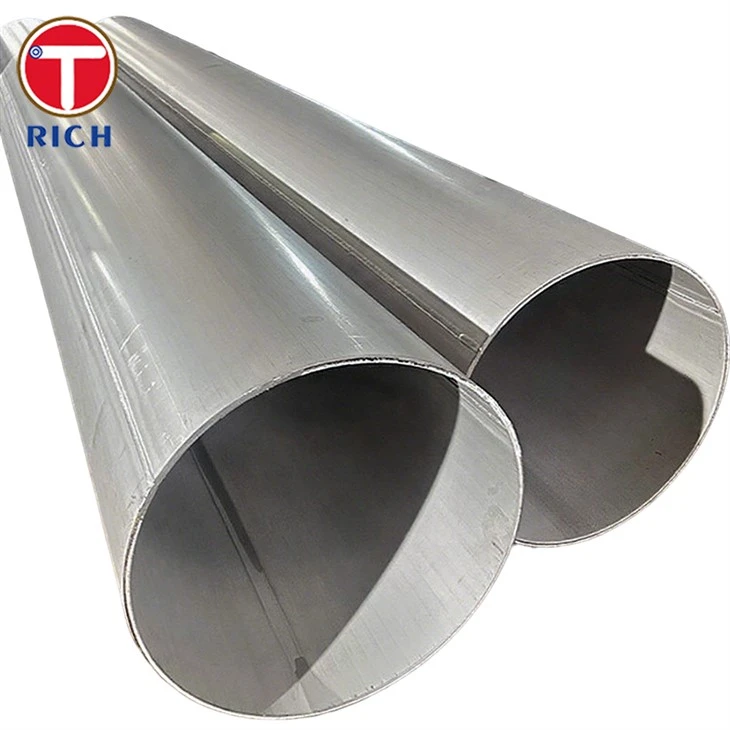

TORICH 304 welded stainless steel pipe is supplied in the as-welded (unannealed) condition, in accordance with ASTM A778, offering a cost-effective solution for applications where full annealing is not required to ensure corrosion resistance. The 304 grade features a core composition of 18% chromium and 8% nickel, delivering a corrosion rate of ≤0.03 mm/year in environments ranging from neutral water to mildly acidic or alkaline wastewater.
304 stainless steel pipe exhibits high ductility and excellent formability, allowing it to withstand processing operations such as bending, cutting, and welding. With an operating temperature range of -20°C to 300°C, it is suitable for various water treatment applications, including ambient-temperature water supply, high-temperature circulating water systems, and low-temperature wastewater treatment.
Customized Services
- TORICH offers custom sizing for outer diameters ranging from 8mm to 1800mm and wall thicknesses from 1mm to 60mm; please contact customer service for inquiries regarding special dimensions.
- We support custom fixed lengths between 3 and 12 meters and can process reducing pipes as well as pipes in various lengths.
- We provide surface treatment services such as standard pickling and passivation, internal and external brushed finishes, mirror polishing, and precision degreasing.
Chemical Composition
| Element | Carbon | Manganese | Silicon | Phosphorus | Sulfur | Chromium | Nickel |
| 304 | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 18.0–20.0 | 8.0–11.0 |
| 304L | ≤0.035 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 18.0–20.0 | 8.0–12.0 |
Mechanical Properties
| Property | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HRB) |
| 304 / 304L | ≥515 | ≥205 | ≥35 | ≤90 |
Possible Alternative Grades
- For applications involving industrial wastewater with high chloride content, seawater desalination, or high-salinity sewage treatment, 2205 duplex stainless steel is a suitable choice; it offers two to three times the crevice corrosion resistance of 304 and higher strength, though at a higher cost.
- For scenarios involving chemical wastewater, seawater pretreatment, or the treatment of highly polluted industrial water, 316L stainless steel is a suitable option; compared to 304, it offers a broader range of corrosion resistance.
applications areas
- Municipal drinking water treatment plants: filter piping, backwash lines, chemical dosing lines (chloride levels <200 ppm)
- Industrial wastewater treatment: neutralization tank piping, sedimentation tank connections, sludge transport piping
- Desalination and reverse osmosis systems: pretreatment piping, low-pressure section connections (suitable for low-chloride sections)
- Wastewater treatment plants: aeration tank connections, return sludge piping

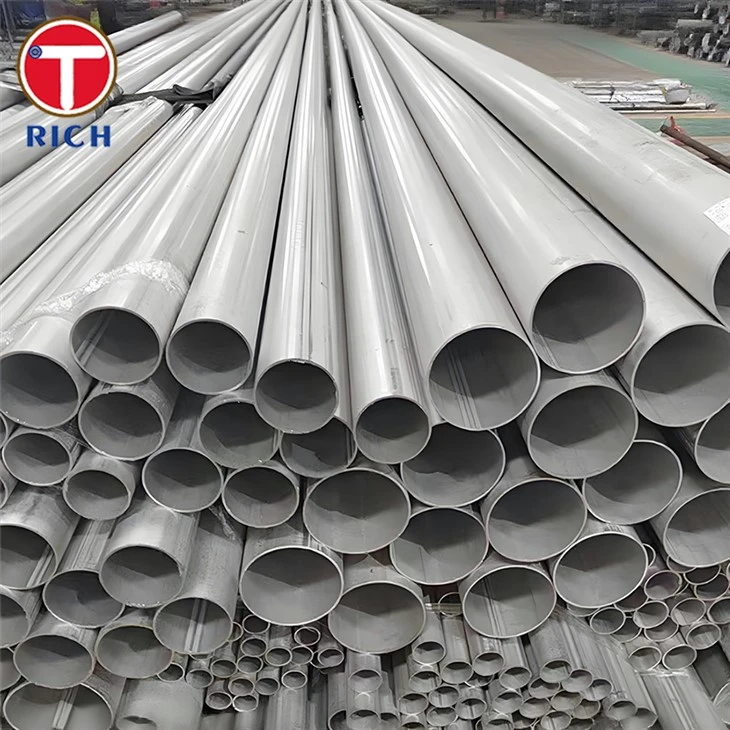

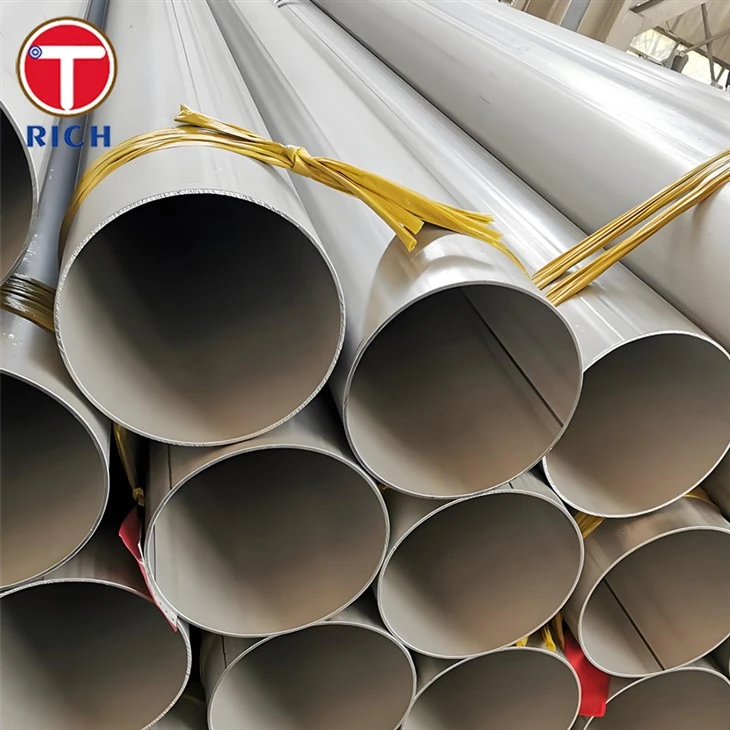

Products Show
Testing Equipment
Factory Equipment
Pickling equipment

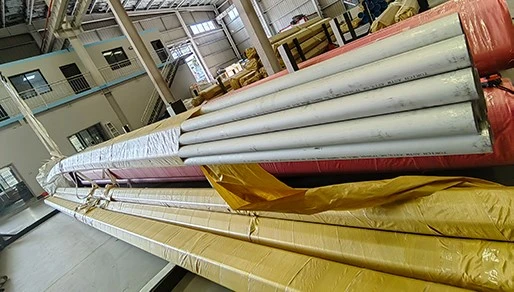

Products Package
FAQ
Q: What is the welding process for A778 piping?
A: The piping is manufactured using flat-rolled steel coils or plates as raw materials via shielded arc welding processes. Welds can be completed using manual or automatic arc welding, including TIG, MIG, and laser welding.
Q: What is the maximum service temperature for A778 Grade 304 piping?
A: The continuous service temperature for 304 stainless steel generally does not exceed 450°C, with a peak service temperature of approximately 750–860°C. However, since ASTM A778 is intended for low-to-medium temperature corrosive environments, the actual service temperature should be determined based on the corrosiveness of the medium and pressure conditions.
Q: Are custom dimensions and special processing available?
A: Yes. Customization is available for non-standard outside diameters, wall thicknesses, and fixed lengths. We also provide a full range of processing services-such as end beveling, chamfering, polishing, anti-corrosion coating, and pre-welded fittings-to suit various non-standard water treatment equipment and piping networks.
