Products Description
Our Advantages
1. High Strength-to-Weight Ratio
- Our 4130 Chromoly Steel Tubing has significantly higher strength than low-carbon steel, allowing for reduced wall thickness while maintaining high strength advantages, thus reducing the overall weight of the structure, making it ideal for motorsports applications.
- The tubing undergoes rigorous mechanical property testing and flattening tests to ensure it remains undeformed under compressive loads.
2. Excellent Fatigue Resistance
- Our 4130 Chromoly Steel Tubing is manufactured using a cold-working process, resulting in seamless tubing with no weak points from welds, ensuring uniform wall thickness and consistent mechanical properties.
- The tubing undergoes optimized heat treatment to reduce residual stress and enhance fatigue resistance, and is supplied in either an annealed or normalized condition.
3. Weldability and Machinability
- The 4130 raw materials selected by TORICH undergo strict chemical composition testing to ensure compliance with ASTM A519 standards. With a carbon content of 0.28–0.33%, the thin-walled sections of the tubing can be welded using standard TIG, MIG, or electrode welding processes without preheating.
- Our tubing is supplied in annealed or normalized condition, exhibiting good ductility, allowing for bending, flaring, and grooving.
4. Quality Control
- The tubing undergoes strict dimensional inspection and surface quality control to ensure dimensions and surface quality meet customer requirements and facilitate easy installation.
- Ultrasonic testing and eddy current testing are employed to ensure the tubing is free of internal defects and can withstand high pressure. Every tube from TORICH undergoes rigorous testing, ensuring full traceability from raw materials to finished product.
application areas
- Roll cages and safety structures
- Chassis and space frame structures
- Suspension components
- Subframes and crossmembers
- Racing motorcycle frames
- Custom chassis manufacturing, roll protection systems, and structural reinforcement.
Chemical Composition
| Element | C | Mn | Cr | Mo | Si | P | S |
|---|---|---|---|---|---|---|---|
| 4130 (%) | 0.28–0.33 | 0.40–0.60 | 0.80–1.10 | 0.15–0.25 | 0.15–0.35 | ≤0.035 | ≤0.040 |
Mechanical Properties
| Property | Tensile Strength (MPa) | Yield Strength 0.2% (MPa) | Elongation (%) | Hardness (HRB) |
| Value | 560–700 | ≥460 | 20–25 | 85–95 |
Possible Alternative Grades
| Alternative Grades | Reasons |
| 4140 | It possesses higher strength, hardness, and wear resistance, and is commonly used in transmission systems and suspension components, axles, driveshafts, gears, steering knuckles, and heavy-duty automotive parts. |
| 1026 | 1026 low-carbon DOM steel tubing is economical, easy to weld and machine, and is used in roll cages for entry-level motorsports, street performance vehicles, chassis manufacturing, and structural components. |
| 4135 | It has good fatigue resistance and is suitable for structural components that need to withstand impact or vibration, such as heavy-duty suspension arms, off-road vehicle frames, and structural reinforcement parts. |

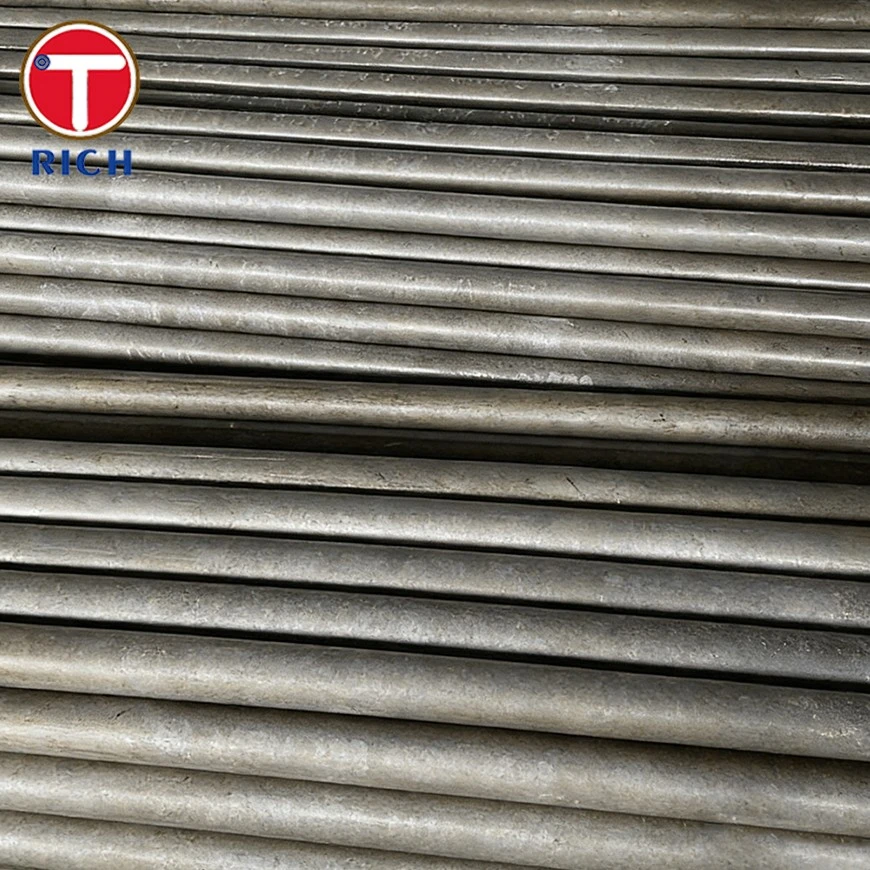

Products Show
Testing Equipment
Eddy Current Flaw Detector
Hydraulic Universal Testing Machine
Intergranular Corrosion Tester
Factory Equipment
Pickling equipment
Polishing equipment
Cold drawing equipment
Products Package
