Products Description
Our Advantages
1. High Corrosion Resistance
- Our tubing is made from high-quality stainless steel, such as 304 and 316L, with raw materials undergoing rigorous chemical composition testing to ensure material quality. It exhibits excellent resistance to body fluids, disinfectants, and sterilization chemicals.
- The tubing undergoes bright annealing and intergranular corrosion testing to ensure excellent corrosion resistance during repeated sterilization cycles involving steam autoclaving and chemical disinfectants.
2. Surface Quality
- Our Hospital Needle Medical Stainless Steel Tubes are bright annealed, pickled, and passivated, ensuring spotless inner and outer surfaces, free from contamination risks, and meeting hospital hygiene standards.
- The tubing undergoes precision polishing and surface roughness control, with Ra ≤ 0.4 μm, and finer roughness can be provided upon customer request.
3. High Precision
- Our Hospital Needle Medical Stainless Steel Tubes are manufactured through multiple precision cold drawing processes, resulting in strict dimensional tolerances. Outer diameter tolerance is controlled within ±0.005–0.01 mm, and wall thickness is ≤±5% mm.
- The tubing undergoes rigorous dimensional and visual inspection to ensure no dimensional deviations during needle grinding, beveling, or assembly.
4. Excellent Mechanical Properties
- Our tubing possesses excellent strength, ductility, and toughness, making it easy to bend and form without cracking during needle grinding and sharpening processes.
- The tubing undergoes rigorous mechanical property testing to ensure compliance with ASTM A269 standards and medical application requirements.
application areas
- Hypodermic needles and syringes
- Cannulas and catheters
- Surgical instruments
- Endoscopic and laparoscopic tools
- Medical gas distribution systems
- Diagnostic and laboratory equipment
Chemical Composition
| Element | C | Cr | Ni | Mo | Mn | Si | Fe |
| 304/304L | ≤ 0.08 / ≤ 0.03 | 18.0 – 20.0 | 8.0 – 10.5 | – | ≤ 2.0 | ≤ 1.0 | Balance |
| 316L | ≤ 0.03 | 16.0 – 18.0 | 10.0 – 14.0 | 2.0 – 3.0 | ≤ 2.0 | ≤ 1.0 | Balance |
Mechanical Properties
| Property | Tensile Strength (min) | Yield Strength (0.2%) | Elongation | Hardness (HRB) |
| 304/304L | 520 MPa | 205 MPa | ≥ 40% | ≤ 90 |
| 316L | 515 MPa | 170 MPa | ≥ 40% | ≤ 90 |
Possible Alternative Grades
- 321 stainless steel: Improved high-temperature performance for sterilizable equipment.
- 316Ti: Titanium-stabilized alloy with excellent resistance to intergranular corrosion.
- 17-7PH: Precipitation-hardened stainless steel for spring mechanisms.

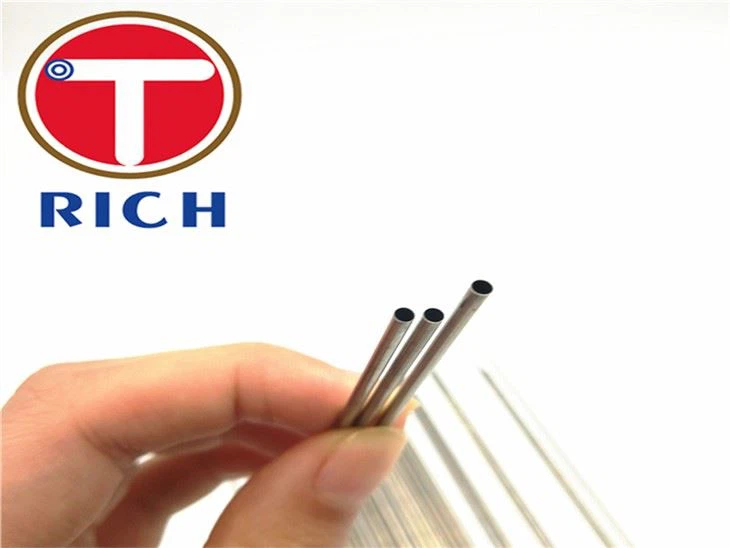

Products Show
Testing Equipment
Eddy Current Flaw Detector
Hydraulic Universal Testing Machine
Intergranular Corrosion Tester
Factory Equipment
Pickling equipment
Polishing equipment
Cold drawing equipment
Products Package
