Products Description
Product Specifications
| Standards | ASTM A790 / ASME SA790 |
| Steel Grades | UNS S32750 |
| Equivalent Standards | EN 10216-5 1.4410, DIN X2CrNiMoN25-7-4 |
| Outer Diameter (OD) | 6 mm – 630 mm (seamless) ; 8 mm – 1800 mm (welded) |
| Wall Thickness (WT) | 0.5 mm – 60 mm |
| Length | 6/12 m |
| Surface Treatment | Pickled & passivated |
| Production Process | Hot extrusion / Cold drawing /TIG |
| Condition | Solution annealed |
UNS S32750 pipe exhibits excellent resistance to chloride-induced pitting and crevice corrosion, with a PREN value of ≥42-far exceeding that of 316L (PREN ~24) and standard duplex steel 2205 (PREN ~35). It operates reliably in H₂S-containing sour gas environments and concentrated chloride environments at temperatures above 60°C, without the risk of corrosion cracking.
With a yield strength of approximately 550 MPa-more than three times that of 316L-S32750 allows for a reduction in wall thickness of over 40% for the same pressure rating. This significantly lowers pipeline self-weight, material costs, and offshore installation expenses, making it particularly suitable for applications requiring weight reduction, such as subsea pipelines and platform risers.
Customized Services
- TORICH offers UNS S32750 pipe in both seamless and welded forms; custom outer diameters and wall thicknesses are available, with tolerances as tight as ±0.1mm.
- Pipe ends can be machined with 30°/35°/37.5° welding bevels per ASME B16.25, or threaded (NPT/BSPT) and socket-weld ends; flanges and quick-connect fittings rated for the appropriate pressure class can be pre-welded to reduce on-site installation work.
- Surface treatment options include mechanical polishing or electropolishing of the inner surface (Ra ≤ 0.4μm), pickling and passivation, bright annealing, and internal/external coatings (such as Fusion Bonded Epoxy (FBE) and 3PE anti-corrosion coatings).
Chemical Composition
| Element | Cr (%) | Ni (%) | Mo (%) | N (%) | Mn (%) | Si (%) | C (%) | Fe (%) |
| UNS S32750 | 24.0–26.0 | 6.0–8.0 | 3.0–5.0 | 0.24–0.32 | ≤1.2 | ≤0.8 | ≤0.03 | Balance |
Mechanical Properties
| Property | Tensile Strength (MPa) | Yield Strength 0.2% (MPa) | Elongation (%) | Hardness (HB) |
| UNS S32750 | ≥795 | ≥550 | ≥25 | ≤310 |
Possible Alternative Grades
- Duplex 2205 (S32205) is a common alternative to S32750 for moderately corrosive oil and gas applications; with lower Cr, Mo, and PREN values, it is widely used in general marine engineering.
- For applications involving low chloride levels and moderately corrosive environments, 316L is a suitable choice, applicable to utility piping, instrumentation systems, and indoor processing equipment.
- For heat exchanger tube bundles requiring deep U-bends or severe cold forming, 254 SMO superaustenitic stainless steel is an option; it has a PREN of approximately 43 and offers excellent formability and low-temperature toughness.
application areas
- Subsea Oil Production Systems: Manifolds, jumpers, and umbilical hydraulic control lines.
- Topsides Processing Equipment: Production separator inlets/outlets, thermal treatment units, and seawater cooler tube bundles.
- Sour Service: Well-stream flowlines and gathering/transportation networks compliant with NACE MR0175/ISO 15156.
- Chemical and Methanol Injection Lines: Resistant to high-concentration brines and acidic chemicals.
- Seawater Desalination and Firewater Systems: High-pressure reverse osmosis (RO) membrane housings and offshore platform booster pump piping.

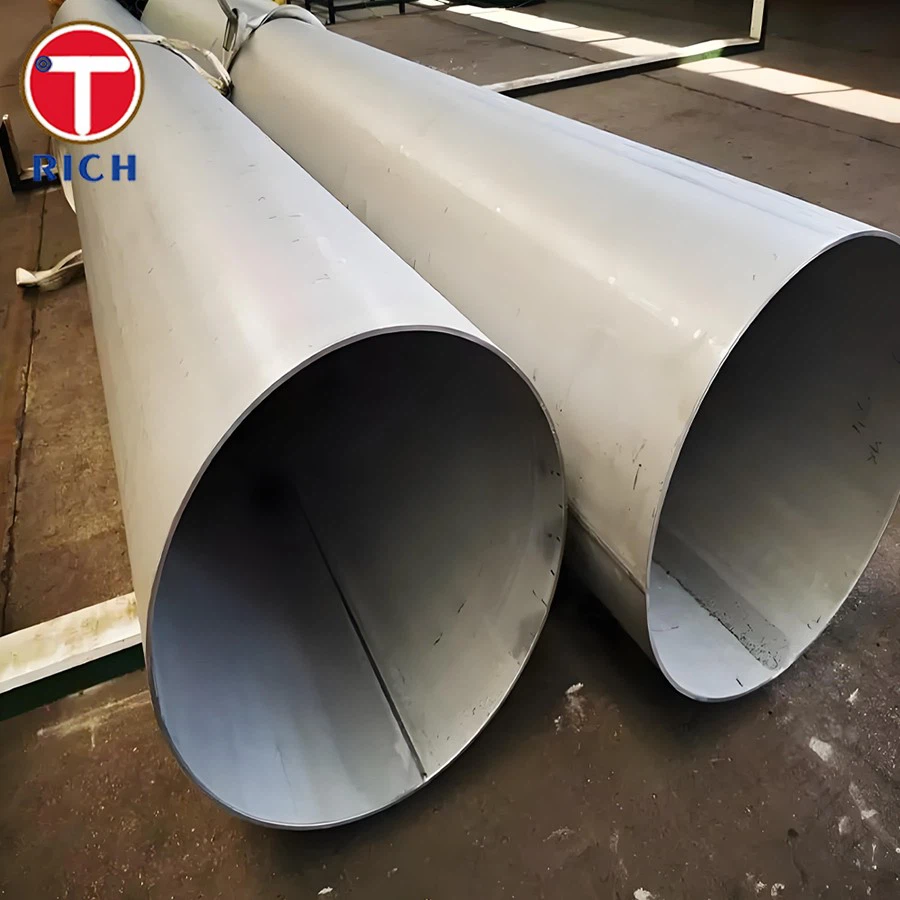

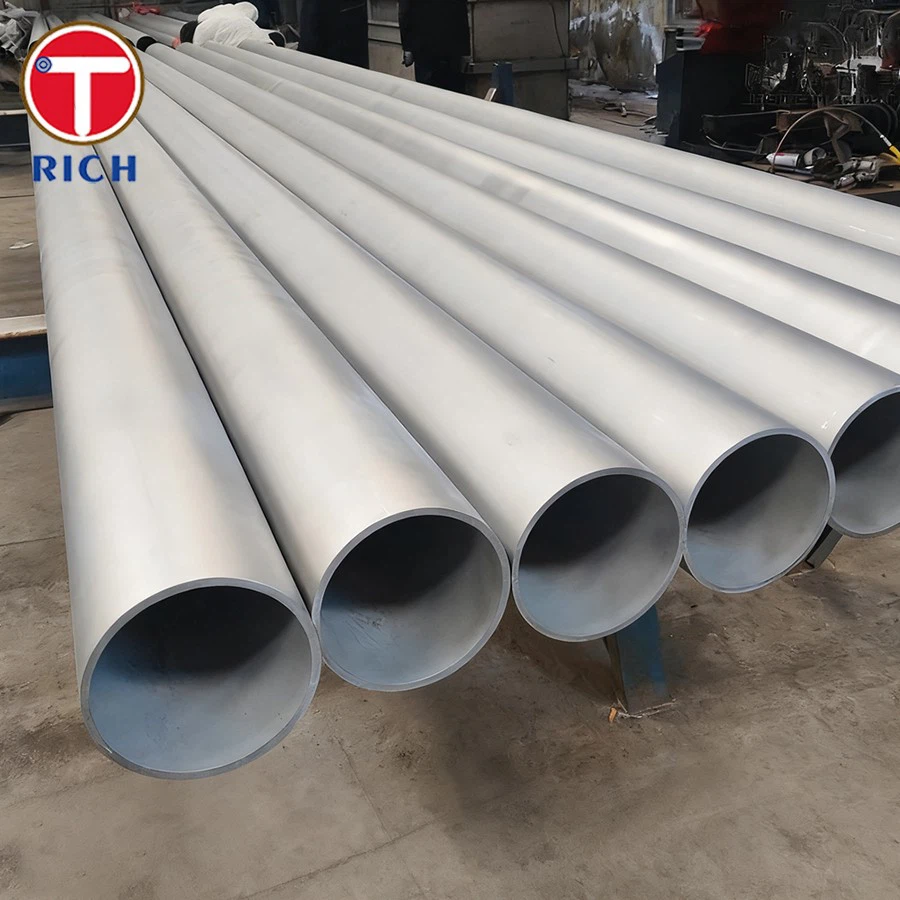

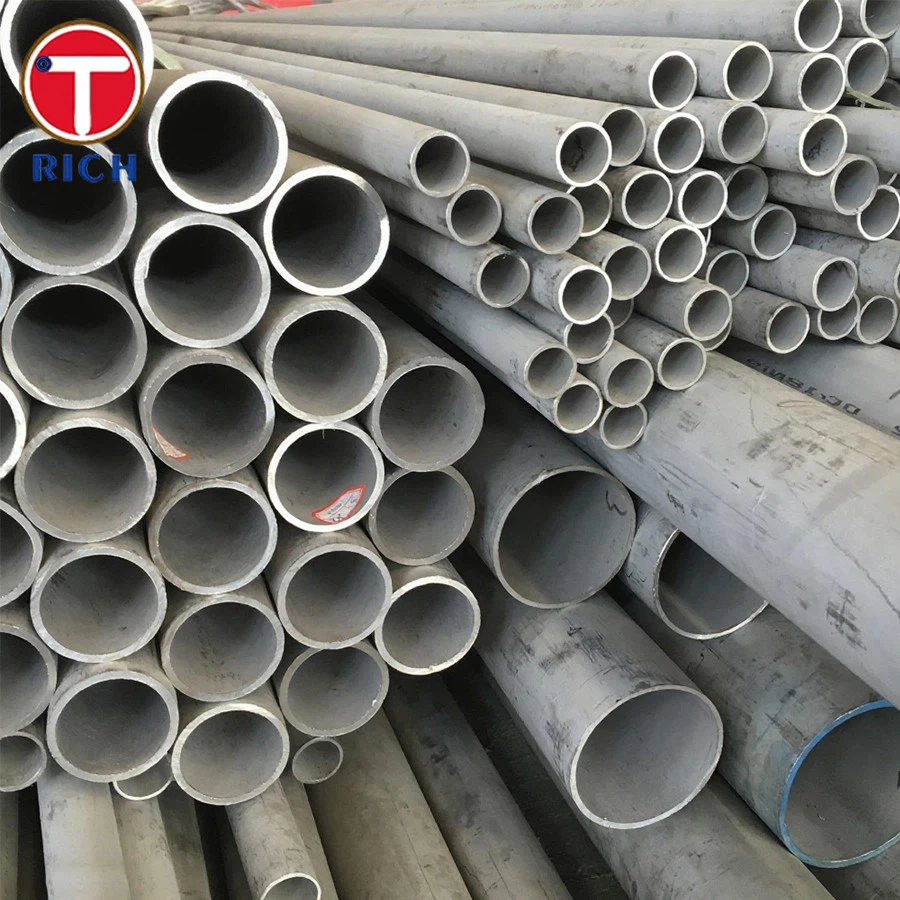

Products Show
Testing Equipment
Factory Equipment
Pickling equipment
Products Package
FAQ
Q: Does S32750 require post-weld heat treatment (PWHT)?
A: For critical oil and gas applications-particularly subsea components, sour service, or parts requiring maximum corrosion resistance-post-weld solution annealing at 1025–1125°C followed by water quenching is strongly recommended.
Q: What is the maximum service temperature for S32750 piping?
A: It is generally recommended that the long-term service temperature does not exceed 300°C (572°F). Exceeding this temperature significantly increases the risk of brittle phase precipitation (such as the sigma phase), which can severely compromise toughness and corrosion resistance.
Q: What are your hydrostatic testing standards for piping?
A: We can conduct standard hydrostatic testing at 1.5 times the design pressure or perform tests according to customer-specified standards to ensure 100% leak-tight integrity. 100% full-body eddy current or ultrasonic testing is also available.
