Products Description
Product Specifications
| Standards | ASTM A269 / ASME SA269 |
| Steel Grades | TP304 TP304L TP304LN TP316 TP316L TP316LN TP317 TP321 TP347 TP348 TPXM10 TPXM11 TPXM15 TPXM19 TPXM29 |
| Equivalent Standards |
EN 10216-5,JIS G3469,DIN 17458 |
| Outer Diameter (OD) | 3.0 mm – 114.3 mm(1/8" – 4") |
| Wall Thickness (WT) | 0.3 mm – 6.0 mm |
| Length | 6/12m, or customizable |
| Surface Treatment | Bright Annealed |
| Production Process | Cold Drawn |
| Condition | Solution Annealed |
ASTM Stainless Steel Pipe is manufactured using ultra-low carbon stainless steel grades-such as TP304L and TP316L-which are capable of withstanding the weak acids, weak bases, disinfectants (e.g., hydrogen peroxide and sodium hydroxide), and chloride-rich environments commonly encountered in pharmaceutical manufacturing. These pipes ensure long-term stable operation at temperatures below 350°C, free from the risk of corrosion or leakage.
ASTM A269 Stainless Steel Pipes are produced using a multi-pass cold rolling/cold drawing process, allowing for the control of outer diameter and wall thickness tolerances within ±0.05 mm. This ensures a high-precision fit with compression fittings and automated orbital welding systems.
Customized Services
- TORICH offers cut-to-length services ranging from 1 m to 12 m, as well as custom sizing services.
- In addition to a bright annealed finish, we provide EP (electropolishing) services, with customizable surface roughness options: BA (Bright Annealed): Ra ≤ 0.5 μm; EP (Electropolished): Ra ≤ 0.25 μm.
- Upon customer request, we offer various dust-free packaging methods, including single PE bag packaging with sealed ends, dust-free plastic wrapping, and wooden crate packaging for export.
- We also provide tube end processing services for automated welding applications, as well as flaring and swaging services.
Chemical Composition
The following are typical values for ASTM A269 TP316L
| Element | C | Mn | P | S | Si | Cr | Ni | Mo |
| Composition (%) | ≤0.035 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 |
Mechanical Properties
The following are typical values for ASTM A312 TP316L
| Property | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HB) |
| Value | ≥ 485 | ≥ 170 | ≥ 35 | ≤ 95 |
Possible Alternative Grades
- For standard pharmaceutical environments (involving the conveyance of purified water or general pharmaceutical fluids, and without requirements for high-temperature sterilization), TP304L is a suitable choice.
- For high-temperature sterilization systems involving repetitive SIP (Sterilization-in-Place) cycles, TP321 is recommended; it offers superior resistance to sensitization and is well-suited for high-temperature steam lines.
- For environments involving aggressive media, high chloride concentrations, or elevated temperatures, 904L or AL-6XN should be selected.
application areas
ASTM Stainless Steel Pipe is specifically designed for the pharmaceutical industry, fully complying with regulatory requirements such as GMP and FDA. It is utilized for the following specific applications:
- Water for Injection (WFI) and Purified Water (PW) generation and distribution loops
- Process piping for bioreactors and fermenters
- Clean-in-Place (CIP) and Sterilize-in-Place (SIP) systems
- High-purity gas and solvent distribution lines
- Tubing for filling and packaging machinery
- Chromatography and filtration system skid piping
- Instrumentation lines for sterile environments

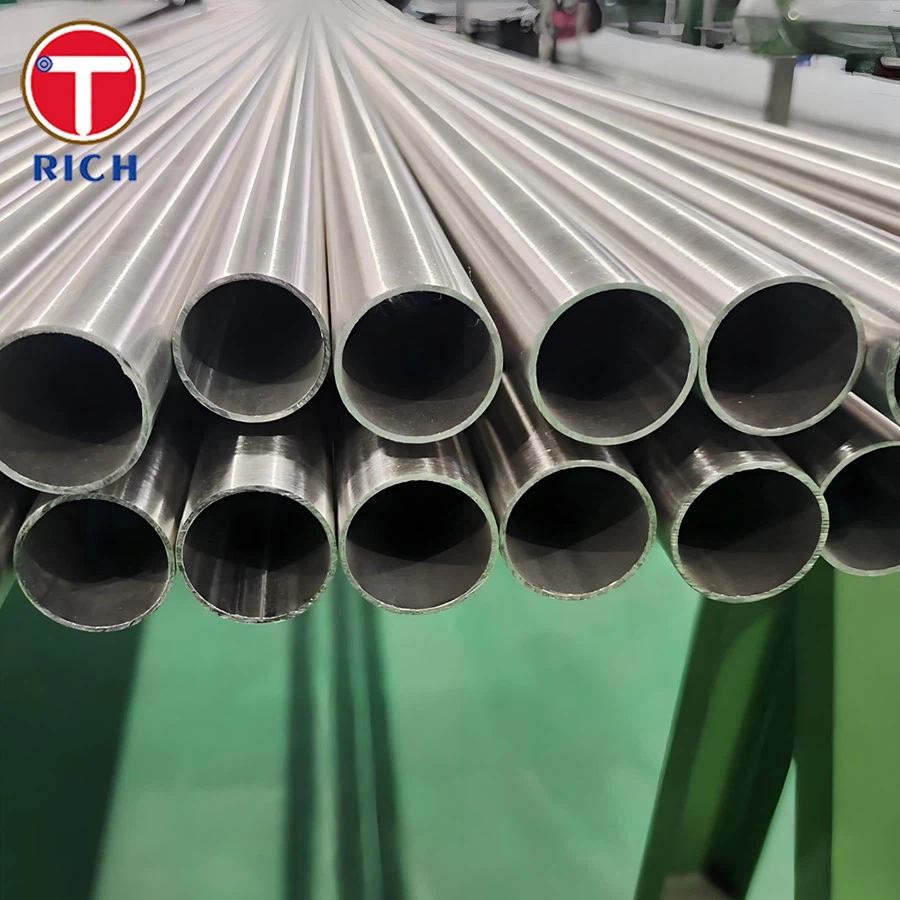

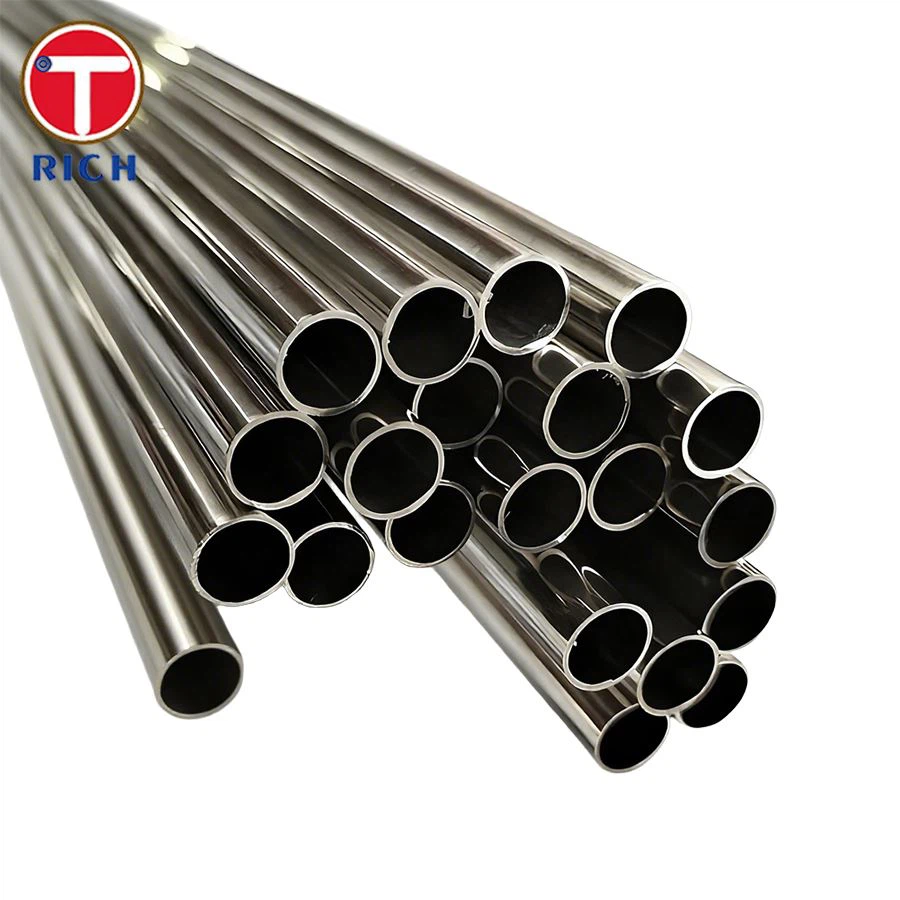

Products Show
Testing Equipment
Factory Equipment
Pickling equipment
Products Package
FAQ
Q: What is the typical surface roughness (Ra) of your tubing?
A: Our standard BA tubing is guaranteed to have an internal surface roughness of Ra ≤ 0.5 µm. Through optional electropolishing, we can achieve a roughness of Ra ≤ 0.25 µm or lower.
Q: How should one choose between TP304L and TP316L?
A: TP304L for cost-effective standard purified water/general pharma (low chlorides). TP316L for Cl-, acids, disinfectants, WFI/vaccines.
Q: Do you provide Material Test Reports (MTRs)?
A: Yes, every shipment is accompanied by a Mill Test Certificate (MTC) in accordance with the EN 10204 3.1 standard, providing full traceability regarding chemical composition, mechanical properties, and heat treatment.
