Products Description
Our Advantages
1. Material Control
Our Titanium Capillary Tubing is manufactured using high-grade titanium alloys (Gr1, Gr2, Gr5, Gr9). Chemical composition checks ensure the high quality and purity of the tubing material, providing complete material traceability and factory testing certificates suitable for industries such as medical, aerospace, and chemical.
2. Precise Dimensions
Our capillary tubes are produced using advanced cold drawing, bright annealing, micro-polishing, and precision cutting processes, ensuring tight tolerances within ±0.01–0.03 mm and a smooth inner surface, suitable for precision instruments.
3. Strong Corrosion Resistance
Our tubing undergoes acid pickling and passivation treatment, resulting in a strong-adhesion oxide film that provides long-term protection even in highly corrosive environments such as chlorides, seawater, oxidizing media, and certain acidic or alkaline solutions. Ideal for chemical processing, marine engineering, medical devices, and other fields.
4. Re-processing Capabilities
Our titanium alloy tubing has excellent weldability, especially the Gr1 and Gr2 materials, allowing customers to assemble, bend, cut, and connect the tubing without compromising quality.
5. Quality Control
All pipes manufactured by TORICH undergo ultrasonic non-destructive testing and hydrostatic pressure testing to ensure that the pipes are free of internal defects, cracks, etc., and can withstand the high pressure in aerospace or hydraulic systems.
application areas
- Medical Industry: Surgical instruments, implantable devices, catheters, endoscope components, etc.
- Aerospace: Precision sensors, hydraulic control systems, aircraft instruments, etc.
- Precision Instruments: Thermocouple protection tubes, semiconductor equipment, etc.
- Chemical and Marine Engineering: Corrosion-resistant fluid transport, marine and subsea equipment, high-purity chemical analysis systems, etc.
Steel grades
- Gr1: Highest purity, excellent corrosion resistance, softest texture, and easiest to form.
- Gr2: Achieves a good balance between strength, ductility, and corrosion resistance.
- Gr5 (Ti-6Al-4V): High-strength aerospace-grade alloy.
- Gr9 (Ti-3Al-2.5V): Lightweight, high-strength alloy, ideal for coils and precision systems.
Chemical Composition
| Element | Titanium (Ti) | Oxygen (O) | Iron (Fe) | Aluminum (Al) | Vanadium (V) | Other Elements |
|---|---|---|---|---|---|---|
| Gr1 | ≥ 99.5 | ≤ 0.18 | ≤ 0.20 | – | – | ≤ 0.40 total |
| Gr2 | ≥ 98.9 | ≤ 0.25 | ≤ 0.30 | – | – | ≤ 0.40 total |
| Gr5 (Ti-6Al-4V) | Balance | ≤ 0.20 | ≤ 0.40 | 5.5–6.75 | 3.5–4.5 | ≤ 0.50 total |
| Gr9 (Ti-3Al-2.5V) | Balance | ≤ 0.15 | ≤ 0.25 | 2.5–3.5 | 2.0–3.0 | ≤ 0.50 total |
Mechanical Properties
| Property | Tensile Strength (MPa) | Yield Strength 0.2% (MPa) | Elongation (%) | Hardness (HB) |
| Gr1 | ≥ 240 | ≥ 170 | ≥ 24 | ~ 70 |
| Gr2 | ≥ 345 | ≥ 275 | ≥ 20 | ~ 80 |
| Gr5 (Ti-6Al-4V) | ≥ 895 | ≥ 825 | ≥ 10 | ~ 200 |
| Gr9 (Ti-3Al-2.5V) | ≥ 620 | ≥ 483 | ≥ 15 | ~ 160 |
Possible Alternative Grades
| Alternative Grades | Reasons |
| Gr12 | Improved strength and weldability, suitable for high-temperature applications. |
| Nickel Alloys | Suitable for extreme temperature environments where titanium cannot withstand them. |
| 316L | A cost-effective corrosion-resistant material. |

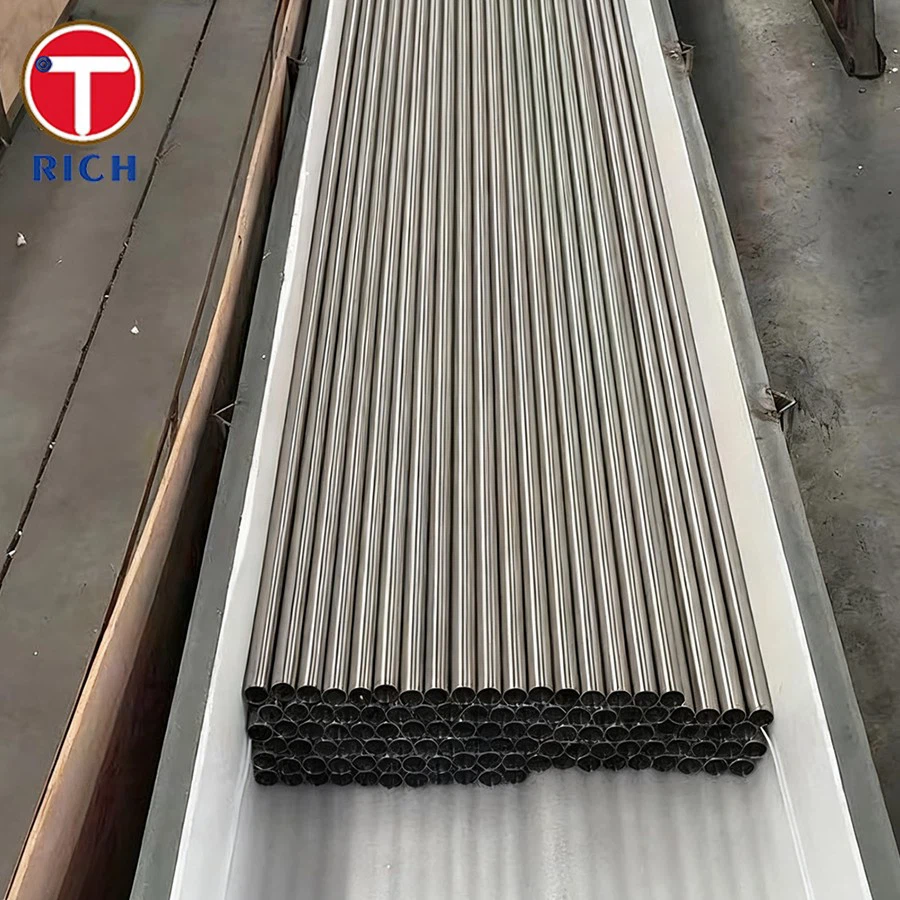

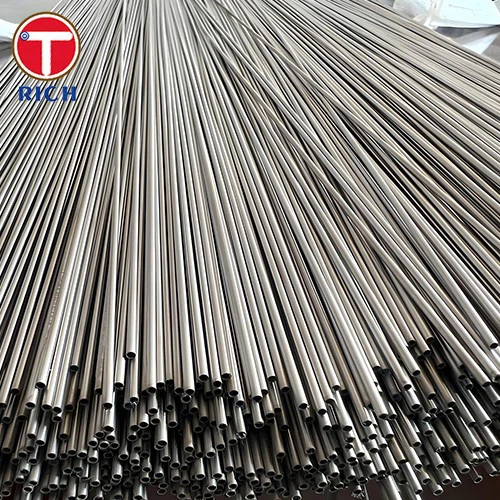

Products Show
Testing Equipment
Factory Equipment
Pickling equipment
Products Package
