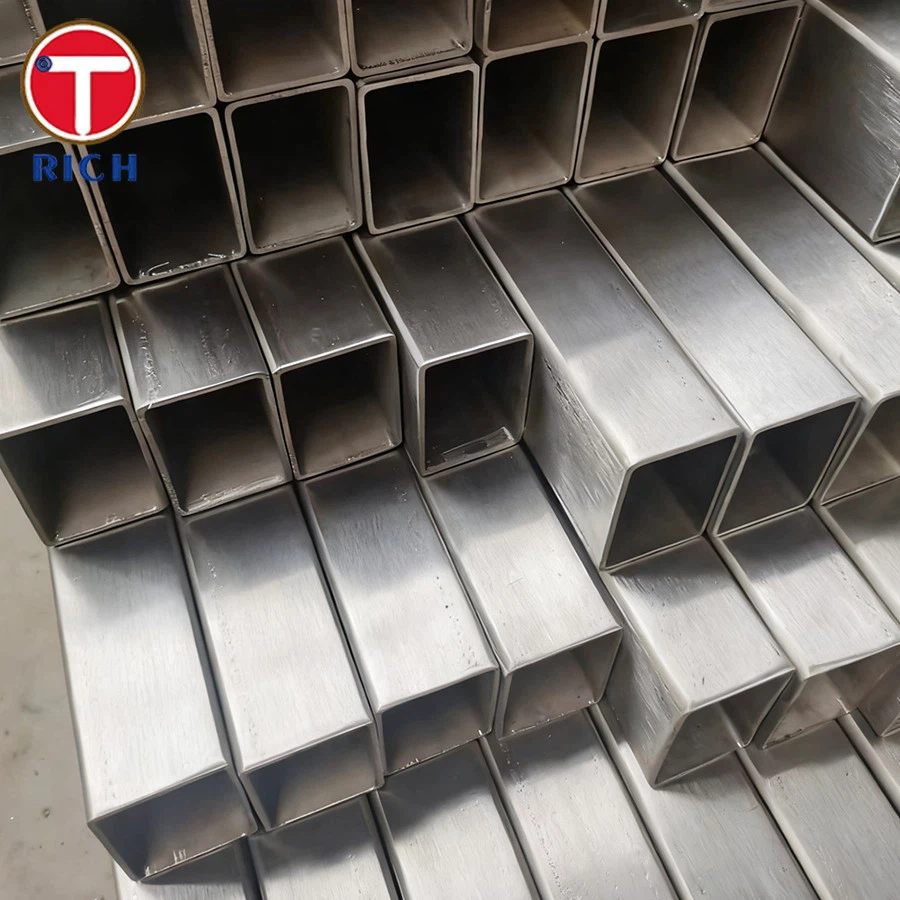

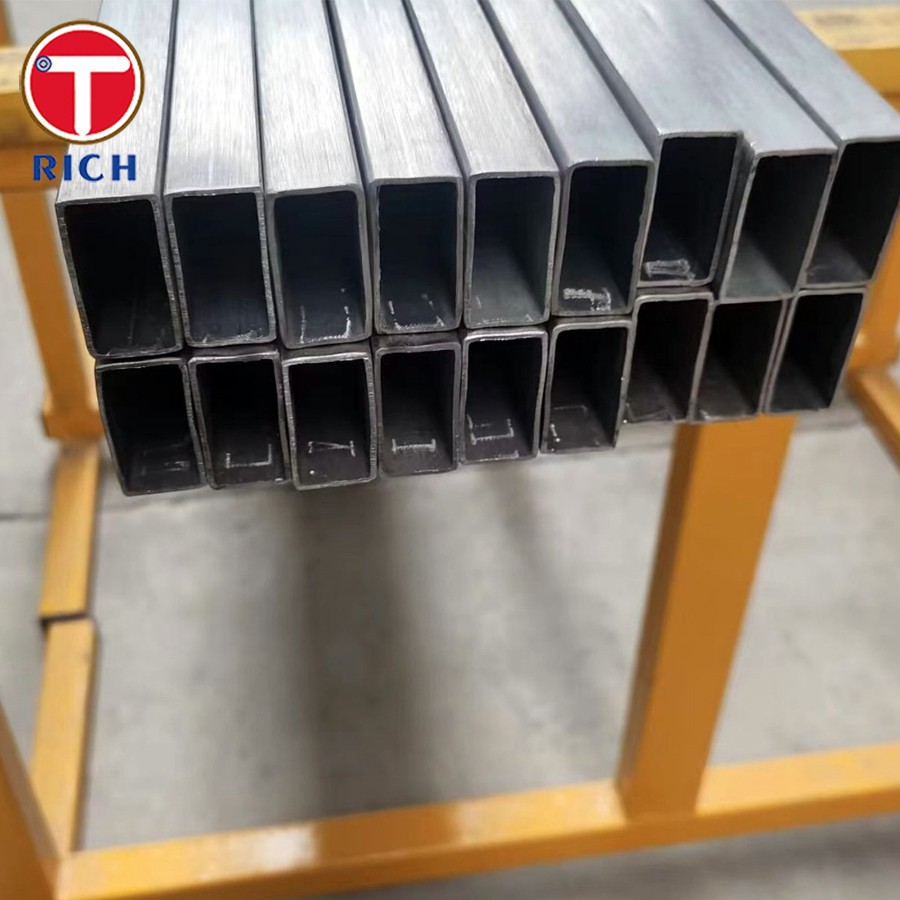

Titanium Rectangular Tube

Our Titanium Rectangular Tube is manufactured using a forging process in accordance with ASTM B862. It offers excellent corrosion resistance, light weight, high strength, and durability, and is commonly used in aerospace frames, exhaust systems, marine structures, and precision equipment.
Outer Diameter: 10×20mm–100×200mm (customizable)
Wall Thickness: 0.5mm-6mm (customizable)
Length: Can be customized upon request
Steel Grade:Grade 1, Grade 2, Grade 2H, Grade 3, Grade 5, Grade 7, Grade 7H, Grade 9, Grade 11, Grade 12, Grade 13, Grade 14, Grade 15, Grade 16, Grade 16H, Grade 17, Grade 18, Grade 19, Grade 20, Grade 21, Grade 23, Grade 24, Grade 25, Grade 26, Grade 26H, Grade 27, Grade 28, Grade 29, Grade 33, Grade 34, Grade 35, Grade 37, Grade 38

Products Description

Our Advantages

1. High Strength
Our Titanium Rectangular Tube offers the advantages of ultra-high strength and lightweight, especially Gr.19. Through solution treatment and aging, its tensile strength can easily exceed 1100 MPa or even higher, while maintaining excellent toughness. This makes it ideal for high-strength applications such as aerospace structural components and high-performance racing suspension systems.

2. High Corrosion Resistance
Our tubes undergo ASTM G31 corrosion testing and demonstrate excellent corrosion resistance in various environments, including seawater, chlorides, acids, and oxidizing/reducing agents.

3. Standards and Certifications
Our Titanium Rectangular Tube is manufactured in accordance with ASTM B862 and carries PED, TÜV, ISO 9001, ISO 14001, and CE certifications.

4. Surface Quality
Our tubes are pickled and polished to ensure the surface is free of defects such as cracks, scratches, folds, and pitting.

application areas

Chemical Processing Industry: Heat exchangers, condensers, and evaporators for handling acidic or chloride-rich fluids, as well as fertilizer equipment.
Marine and Offshore Engineering: Seawater cooling systems, risers, and ballast water lines, offshore oil and gas platforms.
Power Generation: Condenser piping, feedwater heaters, and heat recovery systems for power and nuclear power plants.
Aerospace Industry: Lightweight structural components, hydraulic systems, and landing gear components.

Chemical Composition

Element	Ti	O	N	C	Fe	Pd	Al	V	Cr	Zr	Mo
Grade 2 / 2H	Balance	≤0.25	≤0.03	≤0.08	≤0.30	-	-	-	-	-	-
Grade 7 / 7H	Balance	≤0.25	≤0.03	≤0.08	≤0.30	0.12–0.25	-	-	-	-	-
Grade 19	Balance	≤0.13	≤0.05	≤0.05	≤0.25	-	3.0	8.0	6.0	4.0	4.0

Mechanical Properties

Property	Grade 2	Grade 2H	Grade 7	Grade 7H	Grade 19
Tensile Strength (MPa)	≥345	≥483	≥345	≥483	≥860
Yield Strength (MPa)	≥275	≥414	≥275	≥414	≥795
Elongation (%)	≥20	≥18	≥20	≥18	≥10

Possible Alternative Grades

Alternative Grades	Reasons
UNS S31803 / S32205	Duplex stainless steels combine high strength with excellent resistance to stress corrosion cracking and pitting, making them suitable alternatives to titanium in marine, offshore, and chemical processing systems where titanium is less demanding.
TP316L	Grade 316L offers excellent resistance to chloride corrosion and is a common replacement for titanium in heat exchangers, condensers, and desalination units operating under moderate temperature and pressure conditions.
TP904L	With higher nickel and molybdenum contents, it offers enhanced corrosion resistance in acidic and chloride-rich environments, making it suitable for chemical and marine applications at a lower cost than titanium alloys.
