Products Description
Our Advantages
1. High Surface Smoothness
Our PVC Coated Copper Tubing undergoes bright annealing treatment to ensure the inner wall of the copper tube is extremely clean, free from scale and impurities, making it suitable for refrigeration, oil lines, and other applications requiring high purity.
2. Coating Quality
Our PVC-coated copper coils use a PVC coating that effectively resists moisture, salt spray, and industrial pollutants. Adhesion tests are performed to ensure strong bonding between the coating and the copper base tube.
3. Material Control
Our coated copper coils are manufactured from high-quality copper material, undergoing strict chemical composition testing to ensure high thermal conductivity and brazing performance, with a thermal conductivity of 401 W/m·K.

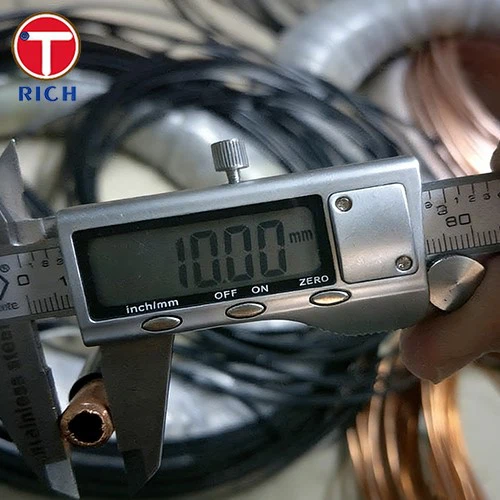

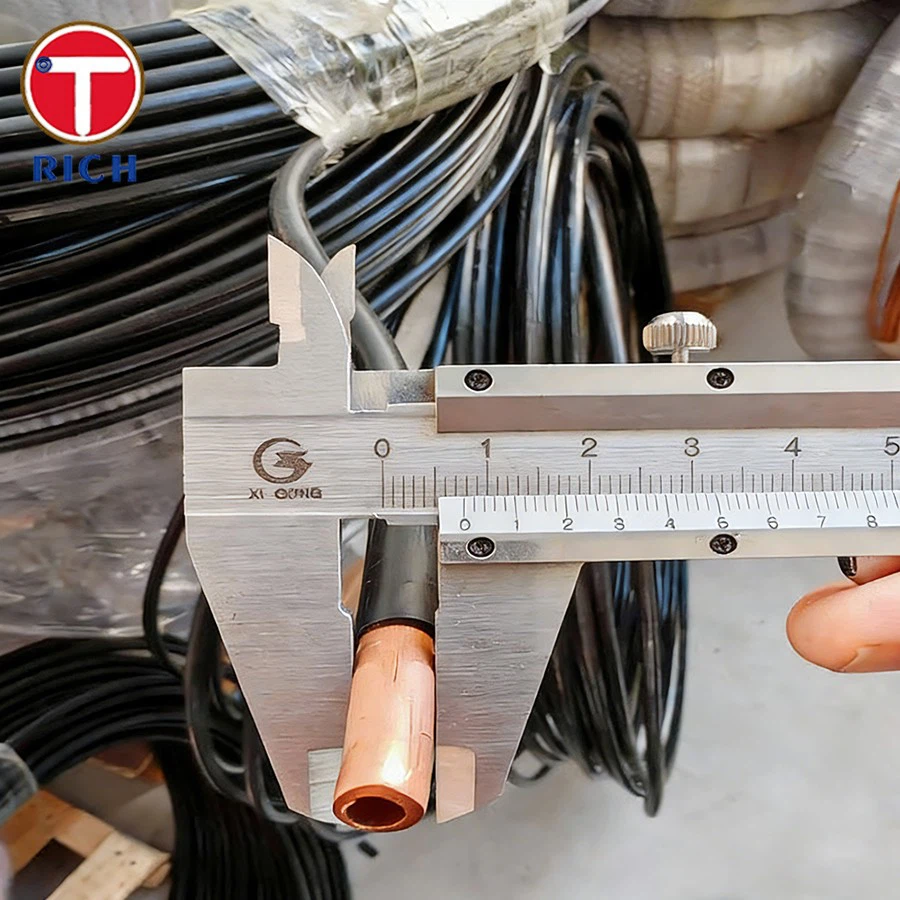

4. Precise Dimensions
Our copper base tubes are seamless tubes manufactured through cold drawing. Bright annealing and straightening processes ensure that the outer diameter and wall thickness tolerances meet ASTM B68 standards or customer requirements, with a diameter tolerance of ±0.05mm.
5. Ductility Advantage
Copper itself has excellent ductility, and with precise annealing treatment, our PVC Coated Copper Tubing exhibits outstanding flexibility. After professional coiling processes, the finished coils can achieve small radius bends, suitable for complex installation scenarios.
6. Customized Production
TORICH has a flexible mold changing system, allowing for quick switching of copper tube diameter, coating thickness (0.3-1.0mm), and coil length to meet the customized needs of different customers. Custom coating colors are also available (such as white, blue, and gray).
application areas
- HVAC and refrigeration systems
- Heat exchangers and condensers
- Water supply and piping systems
- Marine and coastal facilities
- Industrial gas and fluid distribution
Chemical Composition
| Element | Cu (%) | O (%) | P (%) |
|---|---|---|---|
| C10200 | ≥ 99.95 | ≤ 0.001 | - |
| C10800 | ≥ 99.95 | ≤ 0.001 | - |
| C12000 | ≥ 99.90 | - | 0.004 – 0.012 |
Mechanical Properties
| Property | Tensile Strength (MPa) | Yield Strength 0.2% (MPa) | Elongation (%) | Hardness (HB) |
| Value | ≥ 210 | ≥ 70 | ≥ 40 | ≤ 60 |
Possible Alternative Grades
| Alternative Grades | Reasons |
| C71500 | It possesses excellent resistance to seawater corrosion and biofouling, making it suitable for marine, offshore, and coastal heat exchanger applications. |
| C11000 | Widely applicable and cost-effective, it offers excellent electrical and thermal conductivity, making it suitable for general HVAC and piping applications. |
| 304/316L | It features higher pressure resistance and mechanical strength, and lower thermal conductivity than copper tubing, making it suitable for industrial and chemical environments. |

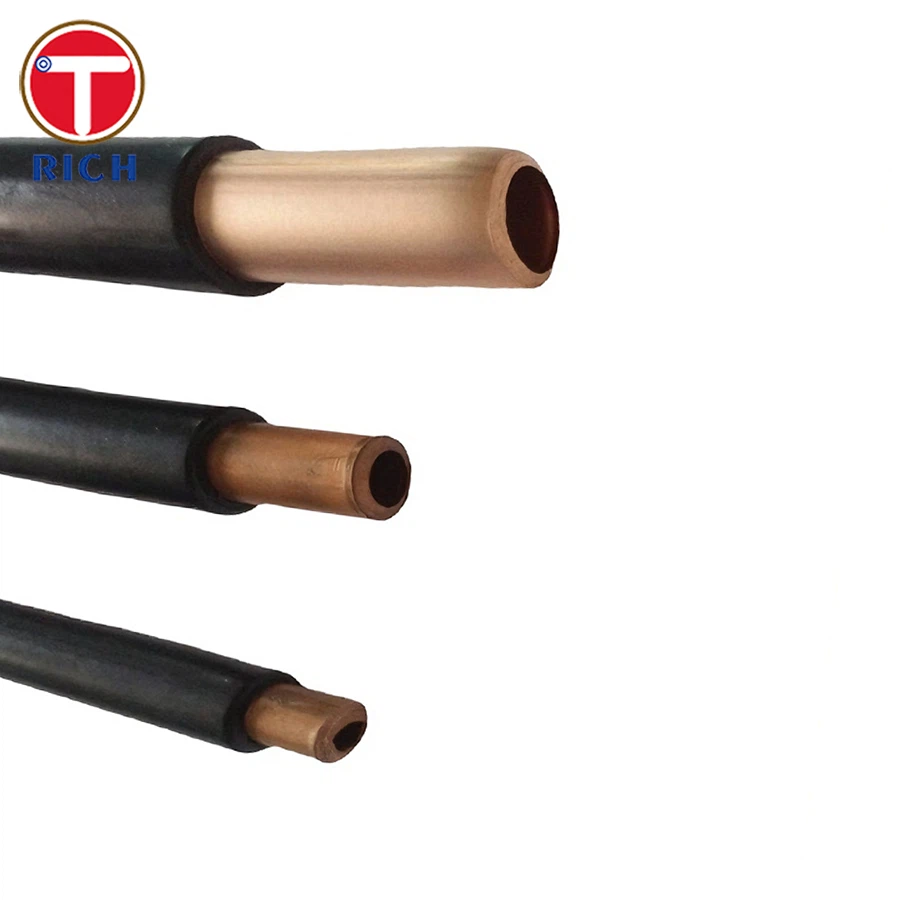

Products Show
Testing Equipment
Factory Equipment
Pickling equipment
Products Package
