Products Description
Product Specifications
| Standards | ASTM A269 / ASME SA269 |
| Steel Grades | TP304 TP304L TP304LN TP316 TP316L TP316LN TP317 TP321 TP347 TP348 TPXM10 TPXM11 TPXM15 TPXM19 TPXM29 |
| Equivalent Standards |
EN 10088-1, JIS G4303 |
| Outer Diameter (OD) | 3.18mm-76.2mm (1/8″-3″) |
| Wall Thickness (WT) | 0.25mm–3.05mm (0.010″ -0.120″) |
| Length | 3 m / 6 m / 12 m, or customizable |
| Surface Treatment | Bright Annealed |
| Production Process | Cold-drawn/annealed |
| Condition | SA/ bright annealed / polished |
Polished Stainless Steel Tubing is manufactured from TP316/TP316L stainless steel, enabling it to withstand corrosion from sulfur-bearing (H₂S) and chloride-bearing (Cl⁻) media, as well as acidic fluids, commonly encountered in the oil and gas industry. The TP316L grade features a carbon content of ≤0.03%, effectively preventing intergranular corrosion following welding and eliminating the need for additional stabilization heat treatments; it is suitable for use within a temperature range of -196°C to 400°C.
Compared to carbon steel piping, stainless steel tubing offers a service life that is 3 to 5 times longer. Furthermore, as the tubing undergoes a polishing treatment, it requires no anti-corrosion coatings-thereby preventing blockages in instrumentation lines-and significantly reduces operation and maintenance costs.
Polished Stainless Steel Tubing is produced using a precision seamless forming process, with outer diameter tolerances controlled within ±0.05 mm and wall thickness tolerances within ±0.03 mm.
Customized Services
- TORICH offers customized sizing services, with an outer diameter range of 3.18 mm to 76.2 mm and a wall thickness range of 0.25 mm to 3.05 mm. For small-bore precision instrumentation tubing, we provide high-precision customization capabilities, achieving outer diameter tolerances of ±0.03 mm and wall thickness tolerances of ±0.02 mm.
- In addition to standard polishing, we offer customized internal electropolishing services, capable of achieving a surface roughness of Ra ≤ 0.25 μm.
- Depending on the specific instrumentation type, we can customize matching connection interfaces-including threaded connections (NPT/BSP), flanged connections (ANSI/EN standards), socket-weld connections, and others-as well as provide customized stainless steel fittings such as couplings, elbows, and tees.
Chemical Composition
| Element | C (%) | Mn (%) | Si (%) | P (%) | S (%) | Cr (%) | Ni (%) | Mo (%) | N (%) |
|---|---|---|---|---|---|---|---|---|---|
| TP316 | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 | ≤0.10 |
| TP316L | ≤0.03 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 | ≤0.10 |
| TPXM-19 | ≤0.06 | 4.0–6.0 | ≤1.00 | ≤0.040 | ≤0.030 | 20.5–23.5 | 11.5–13.5 | 1.5–3.0 | 0.20–0.40 |
Mechanical Properties
| Property | Tensile Strength | Yield Strength (0.2%) | Elongation | Hardness |
|---|---|---|---|---|
| TP316 | ≥515 MPa | ≥205 MPa | ≥40% | ≤217 HB |
| TP316L | ≥485 MPa | ≥170 MPa | ≥35% | ≤217 HB |
| TPXM-19 | ≥690 MPa | ≥380 MPa | ≥35% | ≤100 HB |
Possible Alternative Grades
- For instrumentation lines operating at temperatures ≤ 300°C and pressures ≤ 6 MPa-and free of sulfur- or chlorine-containing media-TP304/TP304L is a suitable choice, offering lower costs.
- For oil and gas instrumentation lines exposed to high-chlorine, high-sulfur, or strongly acidic media, TP317L is recommended; with a PREN ≥ 30, it offers superior corrosion resistance compared to TP316/TP316L.
- For instrumentation lines subject to high working pressures (≥ 10 MPa) and severe corrosion-such as high-pressure lines on drilling platforms-2205 duplex stainless steel may be selected; however, due to its processing complexity, it is not suitable for small-diameter precision instrumentation lines.
application areas
- Oil Exploration and Drilling: Connects various instrumentation on drilling platforms; transmits wellhead pressure and temperature data; conveys drilling fluid samples; establishes signal transmission channels for downhole instrumentation; and is adapted for operating conditions involving vibration and high pressure.
- Oil and Gas Gathering and Transport: Interconnects flow, pressure, and level instrumentation at onshore and offshore gathering stations.
- Petroleum Refining and Petrochemicals: Serves as an accessory component for equipment such as reactors and distillation towers, connecting high-temperature and high-pressure instrumentation.
- Natural Gas Processing: Utilized for instrumentation connections within natural gas purification plants.
- Oil and Gas Storage: Connects level and pressure instrumentation on oil storage tanks and gas storage vessels.
- Deep-Sea Oil and Gas Development: Instrumentation tubing lines for deep-sea platforms.

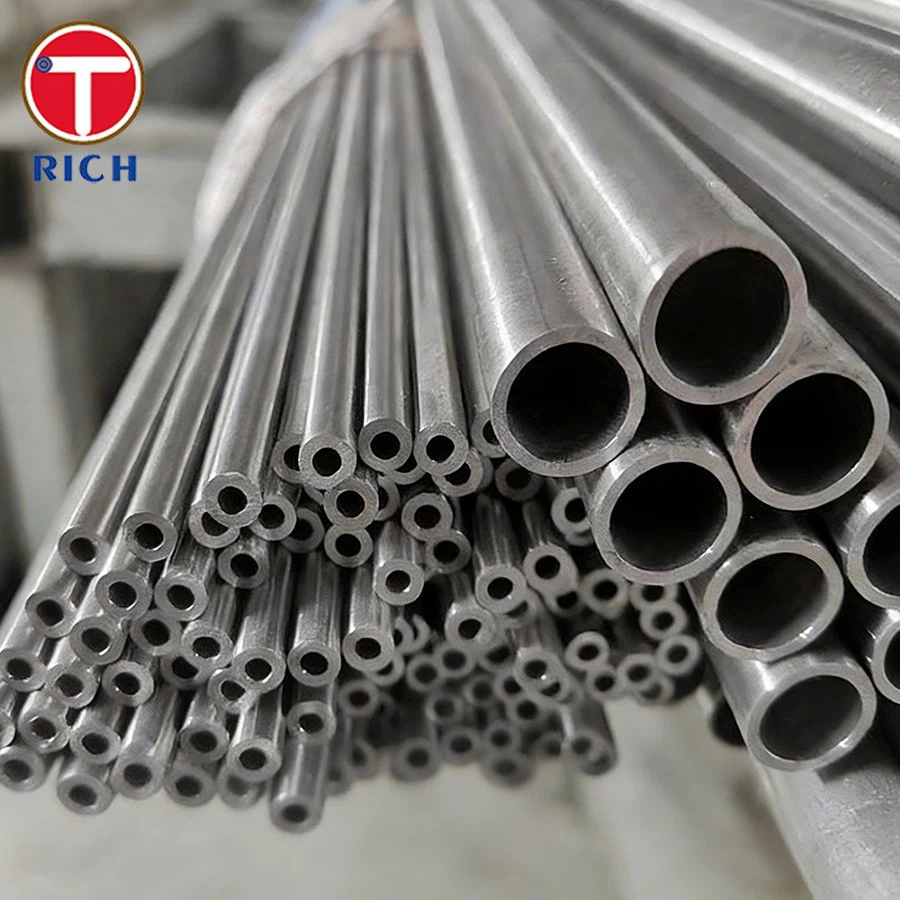

Products Show
Testing Equipment
Factory Equipment
Pickling equipment
Products Package
We offer a wide range of packaging options, including plastic end caps, woven bags, wooden crates, and iron frames. Custom packaging solutions, logo branding, and other personalized requirements are also available to meet specific customer needs.
FAQ
Q: What is the difference between ASTM A249 TP316 and TP316L?
A: Both 316 and 316L are austenitic stainless steels, differing primarily in their carbon content. 316 offers higher strength, whereas 316L carries no risk of intergranular corrosion and requires no post-weld heat treatment, making it ideal for complex instrumentation lines that involve welding and forming.
Q: How does your polishing precision meet the requirements for instrumentation lines?
A: The inner surface of the tubing features a mirror finish (Ra ≤ 0.4 μm), while the outer surface has a finish of Ra ≤ 0.8 μm; the tubing is free of scratches, burrs, and residual impurities.
Q: Do your products comply with relevant standards for the oil and gas industry?
A: The tubing is manufactured in strict accordance with ASTM A249 and ASME SA249 standards, ensuring rigorous control over chemical composition, mechanical properties, dimensional tolerances, and surface quality.
