Products Description
Product Specifications
| Standards | ASTM B861 / ASME SB861 |
| Steel Grades | Grade1 Grade 2/2H Grade3 Grade4 Grade5 Grade7/7H Grade 9 Grade10 Grade11 Grade12 Grade13 Grade14 Grade15 Grade16/16H Grade17 Grade18 Grade 19 Grade 20 Grade 21 Grade 22 Grade 23 Grade 24 Grade 25 Grade26/26H Grade27 Grade28,etc. |
| Equivalent Standards | ASME SB861, ISO |
| Outer Diameter (OD) | 5mm-420mm, customizable |
| Wall Thickness (WT) | 0.5mm-55mm, customizable |
| Length | 6/12 m, or customizable |
| Surface Treatment | Polished |
| Production Process | Cold drawing, cold rolling |
| Condition | Annealed, stress-relieved, or solution-treated |
A dense TiO₂ oxide film, 2 to 10 nm in thickness, forms on the surface of titanium, enabling the material to withstand corrosion from condensates containing sulfur and nitrogen oxides.
The operating temperature range for titanium exhaust piping spans from -250°C to 600°C (for long-term exposure). It retains exceptional mechanical strength even at high temperatures between 500°C and 600°C, with an instantaneous temperature tolerance of up to 800°C. This ensures that critical components within the exhaust system maintain their structural integrity, dimensional stability, and oxidation resistance under high-temperature conditions.
Customized Services
- Based on exhaust system design drawings, we can precisely customize outer diameter, wall thickness, and length dimensions, maintaining a dimensional tolerance within ±0.05 mm.
- Depending on the client's specific operating conditions, we offer a wide range of material grades, including Grade 1, Grade 2/2H, Grade 3, Grade 4, Grade 5, Grade 7/7H, Grade 9, Grade 10, Grade 11, Grade 12, Grade 13, Grade 14, Grade 15, Grade 16/16H, Grade 26/26H, Grade 27, Grade 28, and Grade 29.
- We support various surface treatments, such as matte sandblasting, mirror polishing (Ra ≤ 0.4 μm), and heavy-layer acid pickling and passivation combined with anti-oxidation coating.
- We provide precision cutting services to create custom geometric shapes for automotive exhaust systems.
Chemical Composition
| Element | Al | V | Fe | O | C | N | H | Ti |
| Grade 4 | - | - | ≤ 0.50 | ≤ 0.40 | ≤ 0.08 | ≤ 0.05 | ≤ 0.015 | Balance |
| Grade 5 (Ti-6Al-4V) | 5.5–6.75 | 3.5–4.5 | ≤ 0.25 | ≤ 0.20 | ≤ 0.08 | ≤ 0.05 | ≤ 0.015 | Balance |
| Grade 9 (Ti-3Al-2.5V) | 2.5–3.5 | 2.0–3.0 | ≤ 0.25 | ≤ 0.20 | ≤ 0.08 | ≤ 0.05 | ≤ 0.015 | Balance |
Mechanical Properties
| Property | Grade 4 | Grade 5 (Ti-6Al-4V) | Grade 9 (Ti-3Al-2.5V) |
| Tensile Strength (MPa) | 550–710 | 895–930 | 620–720 |
| Yield Strength (MPa) | 480–620 | 830–880 | 480–620 |
| Elongation (%) | 15–20 | 10–15 | 15–20 |
| Density (g/cm³) | 4.51 | 4.43 | 4.48 |
| Melting Point (°C) | 1660 | 1600 | 1620 |
Possible Alternative Grades
- Grade 5 (Ti-6Al-4V): Offers superior strength, making it suitable for exhaust systems where ultimate performance is paramount; however, it entails higher costs and presents greater machining challenges.
- Grade 9: Combines excellent strength with good weldability, making it suitable for structural components within exhaust systems.
- Grade 1: Possesses optimal formability and corrosion resistance, making it the ideal choice for components subject to lower stress levels that require complex bending and forming processes.
application areas
Titanium pipe for exhaust systems are commonly used in the following automotive components: exhaust manifolds, intermediate pipes and tailpipes, exhaust aftertreatment systems, turbocharger piping systems, motorcycle performance exhaust systems, etc.

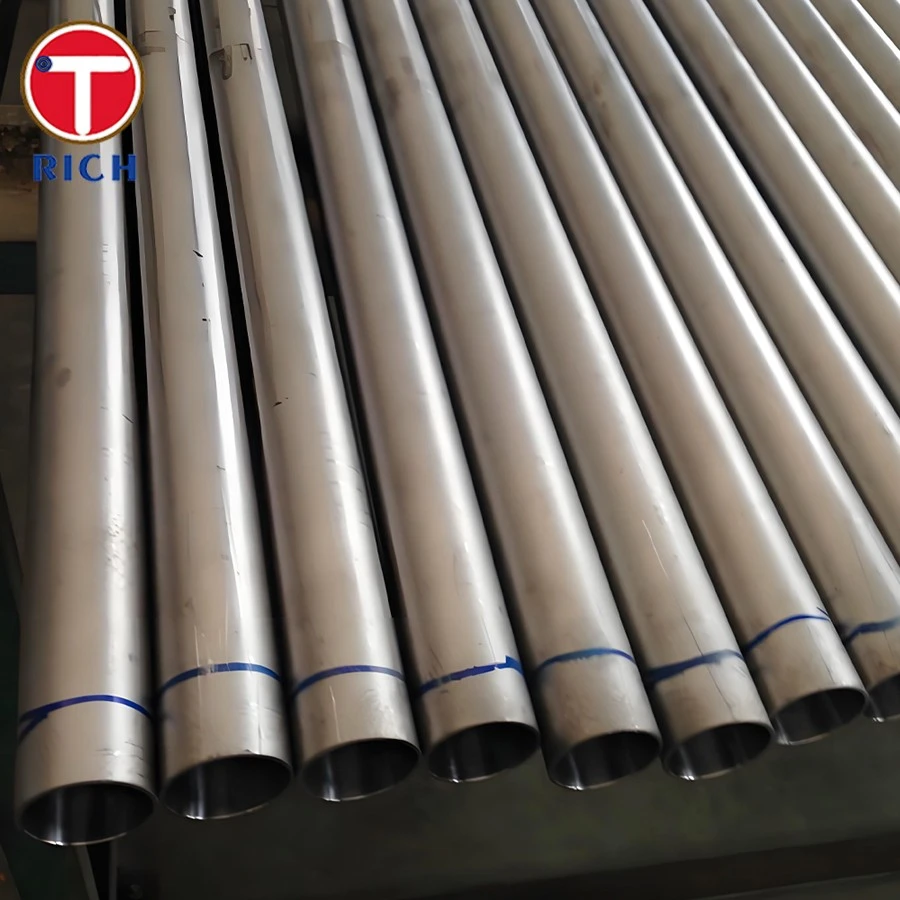

Products Show
Testing Equipment
Factory Equipment
Pickling equipment
Products Package
FAQ
Q: Is titanium tubing easy to weld?
A: Our titanium tubing has excellent weldability, and its surface undergoes rigorous treatment, removing oil and oxide scale, reducing welding difficulty. TIG welding is recommended; the welded joint strength can reach over 95% of the base material.
Q: Can the strength of our titanium alloy exhaust pipes meet the vibration requirements of a car chassis?
A: Our tubing has passed mechanical performance testing and possesses excellent toughness and deformation resistance, enabling stable operation under conditions of car chassis vibration and road bumps.
Q: Can you provide custom sizes?
A: Yes, we offer non-standard custom services. In addition to dimensions, we can provide bends, reducers, dual exhaust pipes, and other irregular structures according to customer needs.
