Products Description
Our Advantages
1. High Strength

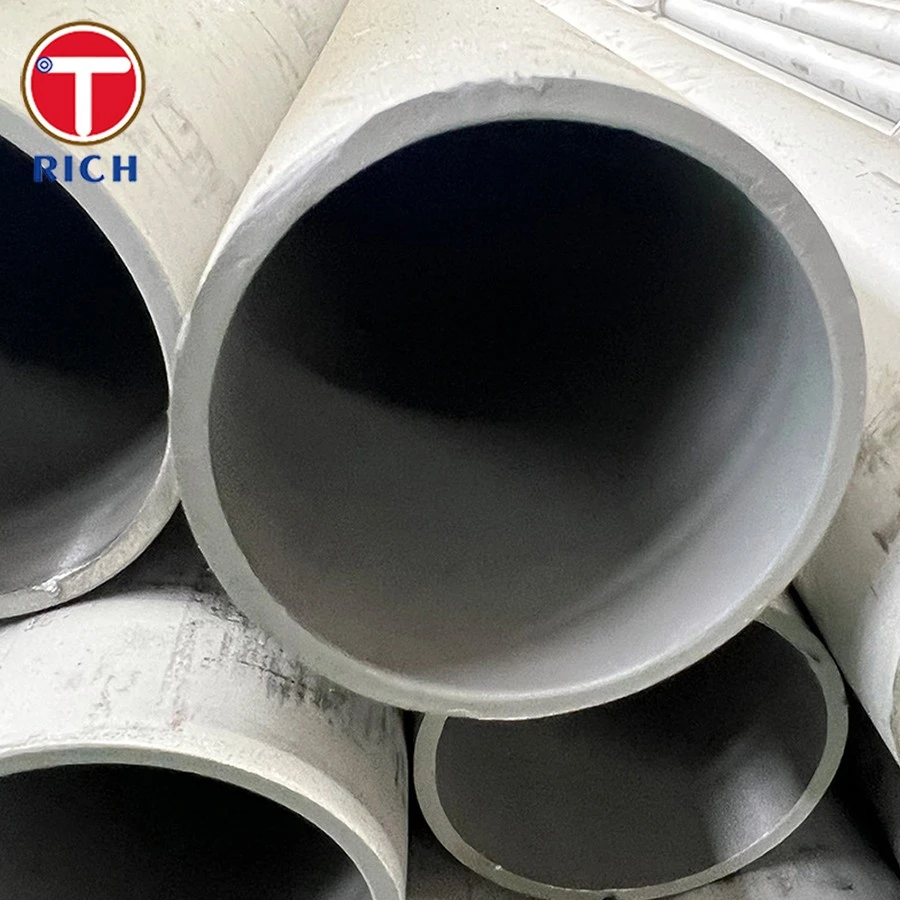

- Our 410 Stainless Steel Pipe is made from premium martensitic stainless steel, offering excellent tensile strength, yield strength, and hardness. Suitable for applications subjected to mechanical stress, pressure fluctuations, and demanding structural requirements.
- TORICH pipes undergo rigorous raw material testing, including chemical composition analysis and mechanical property testing, ensuring compliance with standards and specifications.
2. High Wear Resistance
- Our pipes are hardened to achieve high hardness, exhibiting excellent wear resistance, corrosion resistance, and resistance to mechanical abrasion, making them suitable for machinery, hydraulic systems, and petrochemical equipment requiring long service lives.
- Furthermore, our pipes undergo tempering heat treatment to enhance toughness, reducing the risk of cracking while maintaining high hardness.
3. High Dimensional Accuracy
- Our pipes are precision cold-drawn, automatically straightened, and subject to strict tolerance control, ensuring uniform wall thickness and a smooth inner surface, making them suitable for machinery and hydraulic systems requiring precise dimensions.
- TORICH pipes undergo rigorous dimensional measurement, with wall thickness measured using an ultrasonic thickness gauge to ensure uniform thickness along the entire pipe length, eliminating weak points and ensuring stable pressure performance.
4. Secondary Machining Performance
- Our 410 stainless steel pipes offer superior machinability compared to many other grades of stainless steel, enabling secondary processing such as threading, cutting, drilling, and welding.
- TORICH offers custom sizes and thick-wall configurations (extra-thick and extra-thick wall options available), as well as surface treatments such as pickling, passivation, and polishing.
application areas
- Mechanical Engineering: Shafts, bushings, sleeves, and precision machined parts
- Petrochemicals: High-pressure pipelines, mechanical components, structural pipes
- Automotive: Exhaust systems, structural supports, high-temperature components
- Industrial Machinery: Pump shafts, valve components, wear-resistant parts
- Power Generation: Boiler components, steam turbines, heat-resistant structures
- Oil & Gas: Downhole tools, high-strength mechanical pipes
Chemical Composition
| Element | C | Mn | Si | P (max) | S (max) | Cr |
|---|---|---|---|---|---|---|
| 410 | 0.08–0.15 | ≤1.00 | ≤1.00 | 0.040 | 0.030 | 11.5–13.5 |
Mechanical Properties
| Property | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HB) |
| 410 (Annealed) | ≥450 | ≥275 | ≥20 | ≤183 |
| 410 (Hardened & Tempered) | 650–850 | 450–650 | 15–20 | 200–300 |
Possible Alternative Grades
| Alternative Grades | Reasons |
| 420 | Higher carbon content, resulting in greater hardness and wear resistance. |
| 416 | Easy to machinable, suitable for parts with less demanding machining requirements. |
| 430 | Better corrosion resistance, suitable for applications with lower mechanical load requirements. |
| EN 1.4006/X12Cr13 | European standard, equivalent to AISI 410, suitable for similar mechanical applications. |
Products Show
Testing Equipment
Eddy Current Flaw Detector
Hydraulic Universal Testing Machine
Intergranular Corrosion Tester
Factory Equipment
Pickling equipment
Polishing equipment
Cold drawing equipment
Products Package
