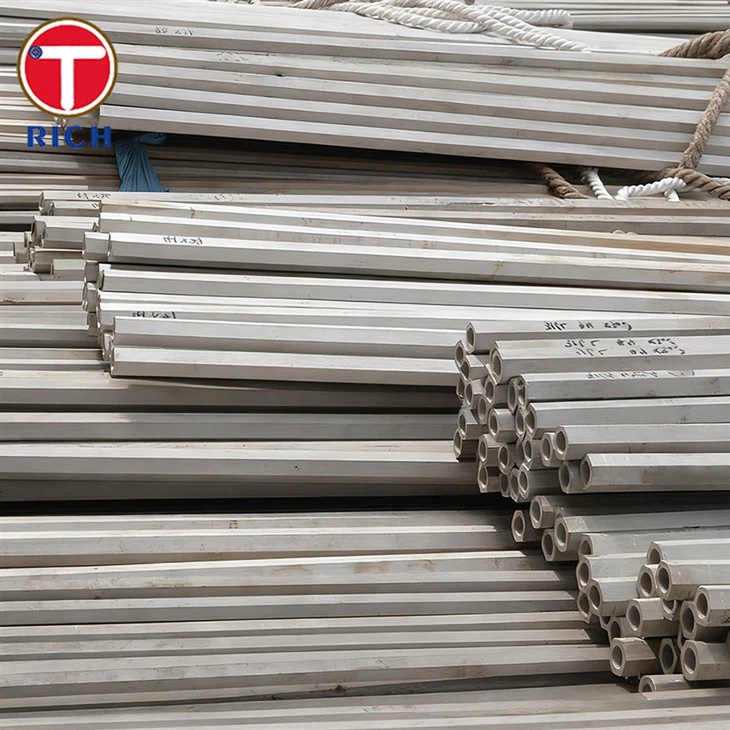

Hexagonal Stainless Steel Tube

TORICH Hexagonal Stainless Steel Tube is a seamless stainless steel hexagonal tube. Cold-drawn from stainless steel billet using hexagonal dies, it conforms to ASTM A312 standards. It offers excellent corrosion and oxidation resistance, along with precise dimensions, making it suitable for industrial and mechanical applications.
Across Flats: 6mm-60mm (customizable)
Wall Thickness: 0.5mm-5mm (customizable)
Length: Can be customized upon request
Steel Grade:304 304L 304H 304LN 309S 309H 310S 316 316L 316LN 317 321 347 348

Products Description

Our Advantages

1. Precise Dimensions
Each of our Hexagonal Stainless Steel Tubes undergoes rigorous dimensional testing, ensuring tolerances within ±0.05 mm.

2. Smooth Surface
Our Hexagonal Stainless Steel Tubes undergo a pickling and passivation treatment, resulting in a smooth, clean, and corrosion-resistant surface suitable for industrial and mechanical systems.

3. Customized Services
We offer surface treatments such as basalt coating (BA), polishing, and custom cutting. TORICH provides technical support, OEM, and ODM services, and provides customized planning solutions.We offer not only inner circle and outer hexagon, but also inner hexagon and outer circle, as well as other custom shapes.

4. Quality Control
Each of our tubes undergoes eddy current testing, hydrostatic pressure testing, and ultrasonic testing to ensure they are free of delamination, voids, or hidden cracks, and are resistant to high pressures.

application areas

Industrial Systems: Heat exchangers, boilers, evaporators, and condensers.
Mechanical Components: Shafts, couplings, gaskets, fasteners, and torque transmission components.
Petrochemical and Refining: Piping for corrosive fluids and high-temperature service.
Power Generation: Furnace components, steam piping, and high-pressure equipment.
Automotive: Exhaust and emission systems, turbocharger housings, chassis and structural reinforcements, etc.

Chemical Composition

Element	C (max)	Si (max)	Mn (max)	P (max)	S (max)	Cr	Ni	Mo	N (max)
309H	0.04–0.10	1.00	2.00	0.045	0.030	22.0–24.0	12.0–15.0	–	–
310S	0.08	1.50	2.00	0.045	0.030	24.0–26.0	19.0–22.0	–	–
316	0.08	1.00	2.00	0.045	0.030	16.0–18.0	10.0–14.0	2.00–3.00	0.10
316L	0.03	1.00	2.00	0.045	0.030	16.0–18.0	10.0–14.0	2.00–3.00	0.10

Mechanical Properties

Property	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	Hardness (HB)	Operating Temperature (°C)
309H	≥515	≥205	≥40	217	Up to 1000°C
310S	≥515	≥205	≥40	217	Up to 1100°C
316	≥515	≥205	≥40	217	Up to 870°C
316L	≥485	≥170	≥40	217	Up to 870°C

Possible Alternative Grades

Alternative Grades	Reasons
304/304L	Low cost, good corrosion resistance, suitable for general applications.
317L/904L	Contains a higher molybdenum content, offering excellent resistance to acid and chloride attack.
Duplex Steel 2205/2507	Offers higher strength and excellent resistance to stress corrosion cracking and pitting.
