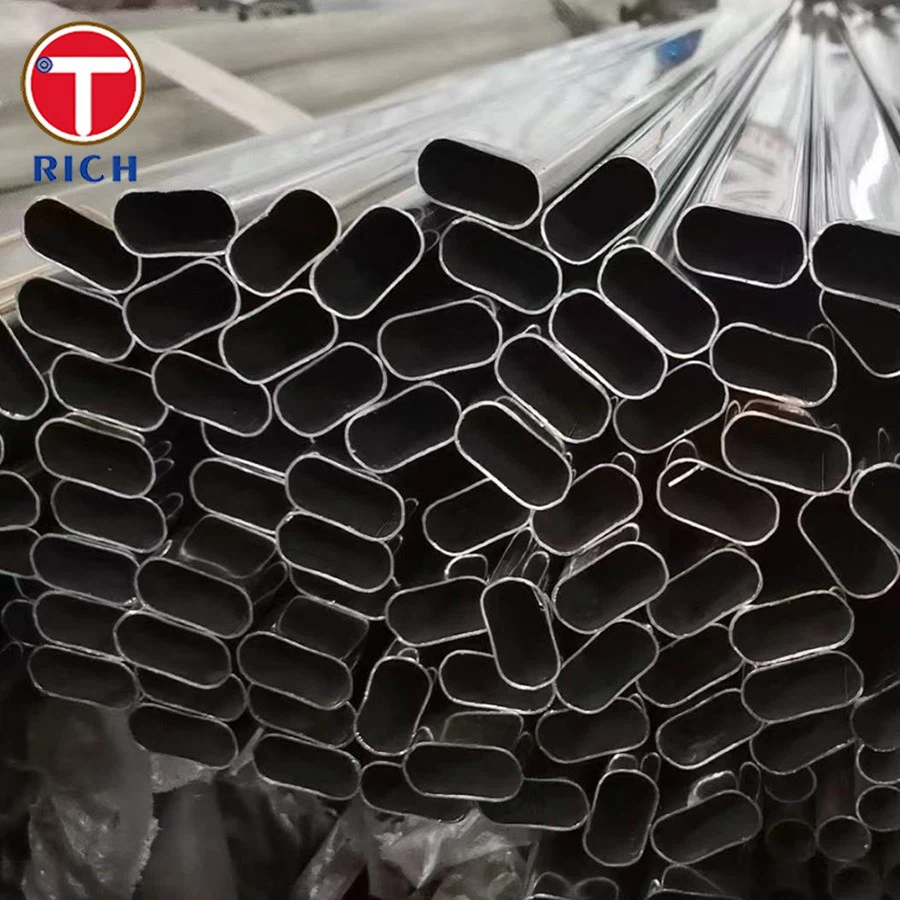

Oval Stainless Tube

TORICH Oval Stainless Tube is available in both seamless and welded versions, crafted from high-quality stainless steels, including 304, 316, and 2205. The surface undergoes pickling, passivation, and polishing, resulting in a smooth finish and excellent corrosion resistance. They are widely used in building structures, handrails, railings, curtain wall frames, furniture, automotive interiors, exhaust systems, fitness equipment, and heat exchanger frames.

Outer Diameter: customizable
Wall Thickness: 0.5mm-2.5mm (customizable)
Length: Can be customized upon request
Standards: ASTM A269，ASTM A213，JIS G3446，Or as per customer specifications.
Steel Grade: TP201 TP201LN TP304 TP304L TP304LN TP316 TP316L TP316LN TP317 TP321 TP347 TP348 TPXM10 TPXM11 TPXM15 TPXM19 TPXM29,etc.

Products Description

Our Advantages

1. Customized Services
TORICH supports fully customized services, including tube size, material, seamless or welded construction, and surface treatments such as BA, polishing, brushing, and pickling and passivation.

2. Excellent Corrosion Resistance
We can provide suitable stainless steel materials according to customer application requirements, and conduct rigorous chemical composition testing to ensure the corrosion resistance of the tubes.

3. High Dimensional Accuracy
The Oval Stainless Tube undergoes a cold drawing process, ensuring a smooth surface and uniform wall thickness. Dimensional tolerances are strictly controlled within ±0.2–0.5 mm, and customization is available. The tubes undergo rigorous dimensional inspection to ensure they meet customer requirements.

4. High-Quality Surface Treatment
The Oval Stainless Tube undergoes pickling and passivation and bright annealing treatment, resulting in a high degree of surface smoothness, corrosion resistance, and aesthetic appeal. Rigorous surface inspection ensures that each tube is free from weld marks, scale, oil stains, and other defects.

5. Good Machinability
Our tubes undergo strict quality control and possess excellent bending and forming properties. They are suitable for various standard welding methods and can be cut, drilled, or formed without cracking.

7. Quality Control
Each batch of our tubes undergoes rigorous chemical composition testing, mechanical property testing, dimensional inspection, and non-destructive testing to ensure compliance with ASTM, EN, JIS, and other standards.

application areas

Architectural and decorative structures: Handrails, railings, facades, curtain walls
Furniture manufacturing: Table and chair frames, bookshelves, and modern furniture
Marine and offshore engineering: Guardrails, supports, and corrosion-resistant components
Automotive and transportation: Structural frames, decorative parts, exhaust components
Industrial equipment: Machine frames, conveyors, support structures

Chemical Composition

Element	C	Si	Mn	P	S	Cr	Ni	Mo	N
304	≤0.08	≤1.00	≤2.00	≤0.045	≤0.030	18.0–20.0	8.0–10.5	-	-
316	≤0.08	≤1.00	≤2.00	≤0.045	≤0.030	16.0–18.0	10.0–14.0	2.0–3.0	-
2205	≤0.03	≤1.00	≤2.00	≤0.030	≤0.020	21.0–23.0	4.5–6.5	2.5–3.5	0.14–0.20

Mechanical Properties

Property	Tensile Strength (MPa)	Yield Strength 0.2% (MPa)	Elongation (%)	Hardness (HB)
304	≥515	≥205	≥40	≤201
316	≥515	≥205	≥40	≤217
2205	≥620	≥450	≥25	≤293

Possible Alternative Grades

Alternative Grades	Reasons
430	It exhibits excellent corrosion resistance and oxidation resistance in mild environments, making it ideal for applications with high demands on appearance, dimensional stability, and cost control.
309	It possesses excellent oxidation resistance and high-temperature strength retention, suitable for power generation and metallurgical equipment, high-temperature exhaust systems and pipelines, etc.
Inconel 625	It offers exceptional corrosion resistance, suitable for extremely corrosive and high-temperature environments.
